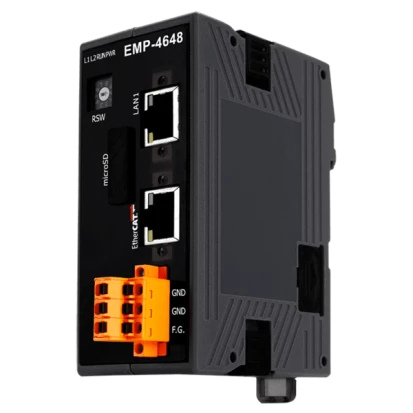

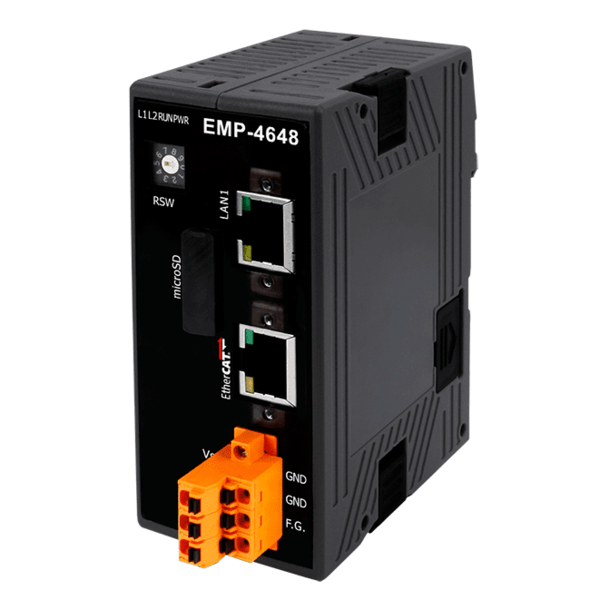

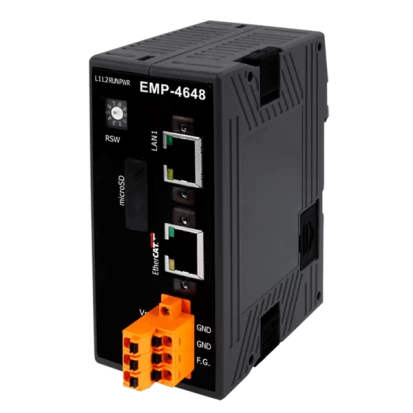

EMP-4648

EMP-4648

ICP DAS
SKU: 80344200
Ultra-compact SoftPLC-based Controller, Cortex-A53, 2GB DDR4, 8GB eMMC Flash, 1x10/100/1000Base-TX LAN, 24VDC, Real-Time Linux, Operating Temperature -25..70 C
Price on request
Available
Available

Construction
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex-A53
Max CPU frequency
1.4 GHz
Memory
Default on Board Memory
2 GB
Software
Operating System Installed
Linux OS
Development Software
Win-GRAF
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Supported Protocols
Industrial Protocols
EtherCAT
Dimensions and weight
Width
43 mm
Depth
108 mm
Height
73 mm
System Power Input
Input Voltage DC
24..24 V
Operating Conditions
Operating Temperature
-25..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
