EDS-P206A-4PoE-S-SC-T

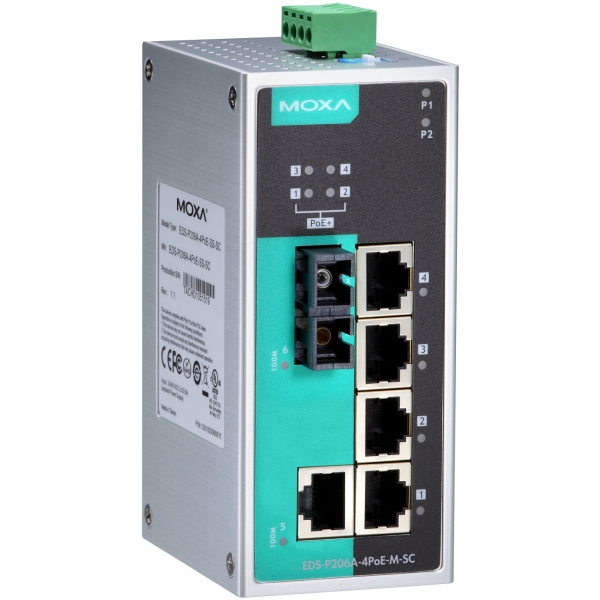

Unmanaged switch EDS-P206A-4PoE-S-SC-T is a universal solution for construction of energy independent segments of industrial networks. This becomes possible, thanks to 6 Fast Ethernet switching ports, of which 4 are designed in accordance with Power-Over-Ethernet technology to supply clients with power over a network cable. 100 Base FX optical port with an SC slot provides access to highway communication channels via a single-mode fiber optic cable. The model is characterized by increased temperature resistance. 6-Port Ethernet switch EDS-P206A-4PoE-S-SC-T by MOXA: description and features: IEEE 802.3at protocol ensures increased power of PoE+. Each of 4 ports provides 30 W, which is enough for supplying even power-hungry devices. The device supports intelligent detection. The optic fiber ensures stable communication at the distance of over 40 km and complete interference immunity. Wave: 1310 nm. TX: 0…-5 dBm. RX: -34 dBm. Budget: 29 dB. Dispersion penalty: -3 dBm. The device uses maximum reliable switching algorithm with intermediate storage - Store and Forward. Packet buffer: 512 Kb. MAC address table: 1 K. Interfaces: Auto MDI/MDIX. Communication modes: Full/Half Duplex. There are functions of speed auto negotiation, direct and backward data flow control (IEEE 802.3x). There is a built-in broadcast storm protection. Input voltage: 20…60 V DC. Power consumption: 180 W (7.5 А at 24 V and complete load). The dual power supply circuit automatically activates the redundant power source if the main one fails. Despite the fanless design, the device is capable of operation at extreme ambient temperatures: from -40 to +75 °C. Metal chassis conforms to IP30: 50х115х70. Mean time between failures (MTBF) exceeds 70 years. Multi-functional switch EDS-P206A-4PoE-S-SC-T is a great choice for industrial automation purposes for nearly any weather and industrial conditions. Vibration protection and shock resistance: IEC 60068-2-6/27. The third level of electromagnetic protection from surges, static discharges and impulse interference is confirmed by the international certificates: EN 55022 (class A), FCC Part 15B (class A), EN 61000-4.
