EDS-P206A-4PoE-M-SC-T

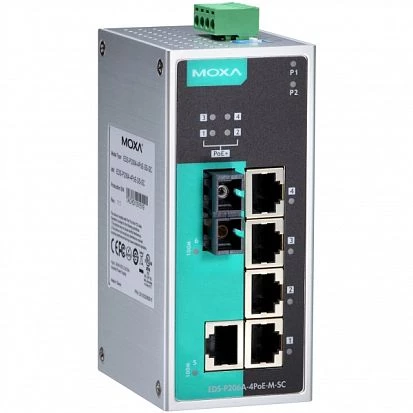

EDS-P206A-4PoE-M-SC-T

MOXA
SKU: 05604300
Unmanaged PoE Ethernet switch with 1x10/100BaseT(X) ports, 4x10/100BaseT(X) PoE ports, 1x100BaseFX multi-mode port with SC connector, Operating Temperature -40..75 шC
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
1xSC, 5xRJ-45
PoE/PoE+ 10/100 Mbit/s
4
Power Budget
120 W
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
12..57 V
Power Supply Reserve input Voltage DC
12..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
50.3 mm
Depth
70 mm
Height
114 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.38 kg
Gross Weight
0.57 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
1xSC, 5xRJ-45
PoE/PoE+ 10/100 Mbit/s
4
Power Budget
120 W
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
12..57 V
Power Supply Reserve input Voltage DC
12..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
50.3 mm
Depth
70 mm
Height
114 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.38 kg
Gross Weight
0.57 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
1xSC, 5xRJ-45
PoE/PoE+ 10/100 Mbit/s
4
Power Budget
120 W
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
12..57 V
Power Supply Reserve input Voltage DC
12..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
50.3 mm
Depth
70 mm
Height
114 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.38 kg
Gross Weight
0.57 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
1xSC, 5xRJ-45
PoE/PoE+ 10/100 Mbit/s
4
Power Budget
120 W
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
12..57 V
Power Supply Reserve input Voltage DC
12..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
50.3 mm
Depth
70 mm
Height
114 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.38 kg
Gross Weight
0.57 kg
Documentation
EDS-P206A-4PoE Datasheet Quick Installation Guide EDS-P206A-4PoE
Documentation
EDS-P206A-4PoE Datasheet Quick Installation Guide EDS-P206A-4PoE
Documentation
EDS-P206A-4PoE Datasheet Quick Installation Guide EDS-P206A-4PoE
Documentation
EDS-P206A-4PoE Datasheet Quick Installation Guide EDS-P206A-4PoE
