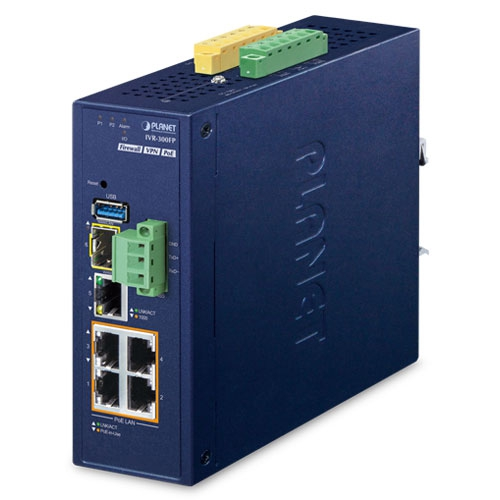

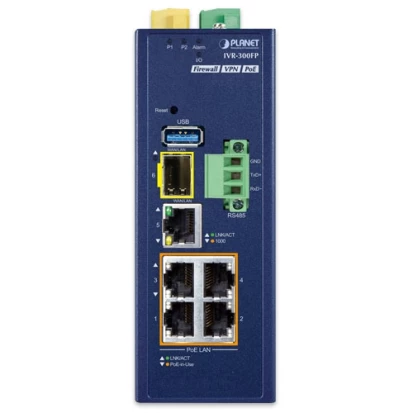

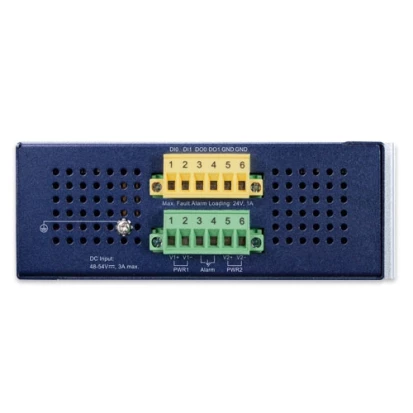

IVR-300FP

Planet
SKU: 57884100
Industrial Security Gateway, IP30, 5x10/100/1000Base-T, 1x1000Base-X SFP, 1xCOM, 1xUSB, 2xDI, 2xDO, 48..54 VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit/s Ports
1
Interfaces
USB Total
1
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog
Security Protocols
SSL, PPTP, L2TP
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.77 kg
Gross Weight
1.27 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit/s Ports
1
Interfaces
USB Total
1
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog
Security Protocols
SSL, PPTP, L2TP
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.77 kg
Gross Weight
1.27 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit/s Ports
1
Interfaces
USB Total
1
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog
Security Protocols
SSL, PPTP, L2TP
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.77 kg
Gross Weight
1.27 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit/s Ports
1
Interfaces
USB Total
1
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog
Security Protocols
SSL, PPTP, L2TP
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.77 kg
Gross Weight
1.27 kg

Documentation
IVR-300FP-Datasheet.pdf
Documentation
IVR-300FP-Datasheet.pdf
Documentation
IVR-300FP-Datasheet.pdf
Documentation
IVR-300FP-Datasheet.pdf
