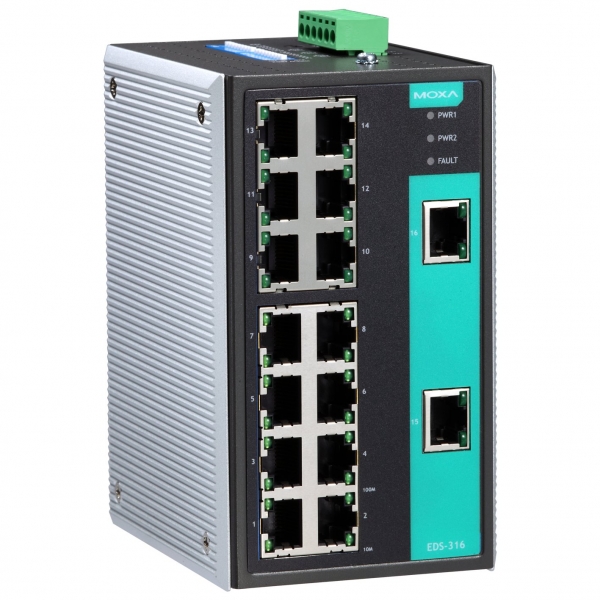

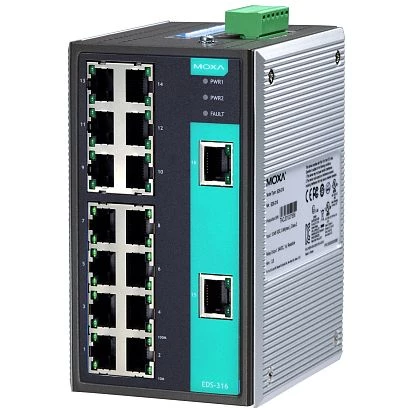

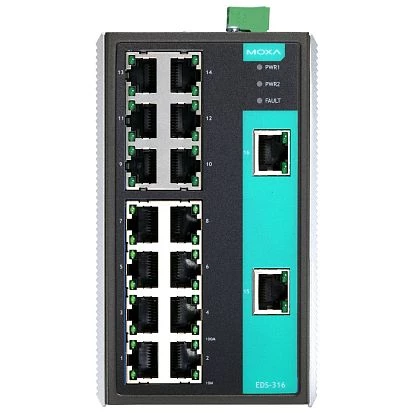

EDS-316
MOXA
SKU: 03274200
Industrial Ethernet Switch with 16 10/100Base-T(X) Ports, RoHS
Price on request
Available
Available
EDS-316 is an industrial unmanaged switch for 16 10/100 BaseT (X) Ethernet ports. This fanless network switch is an ideal solution for building industrial Ethernet networks. Features: - Built-in alarm system of network failures - High-performance switching technology - Address table for 4 thousand addresses - Protection from broadcast storm - Mounting on both wall and DIN rail - The EDS-316 has as a redundant permanent electricity supply, - Storage temperature from -40 to 85 degrees - Mean time between failures (MTBF) for more than 30 years. This Fast Ethernet Switch can work continuously in high-vibration environments, in hazardous areas and in maritime transport. All its capabilities are confirmed by specialized certificates. You can buy it on our web-site. Contact our technicians for more details. They will be able to explain the features of application and configuration of equipment for specific tasks. The price of this Ethernet switch is more than compensated by the advantage of its reliability and the future long and trouble-free operation in any industry.
EDS-316 is an industrial unmanaged switch for 16 10/100 BaseT (X) Ethernet ports. This fanless network switch is an ideal solution for building industrial Ethernet networks. Features: - Built-in alarm system of network failures - High-performance switching technology - Address table for 4 thousand addresses - Protection from broadcast storm - Mounting on both wall and DIN rail - The EDS-316 has as a redundant permanent electricity supply, - Storage temperature from -40 to 85 degrees - Mean time between failures (MTBF) for more than 30 years. This Fast Ethernet Switch can work continuously in high-vibration environments, in hazardous areas and in maritime transport. All its capabilities are confirmed by specialized certificates. You can buy it on our web-site. Contact our technicians for more details. They will be able to explain the features of application and configuration of equipment for specific tasks. The price of this Ethernet switch is more than compensated by the advantage of its reliability and the future long and trouble-free operation in any industry.
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
4000
Packet Buffer Size
1.25 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
80.1 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, IEC 60945 4th, GL
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.43 kg
