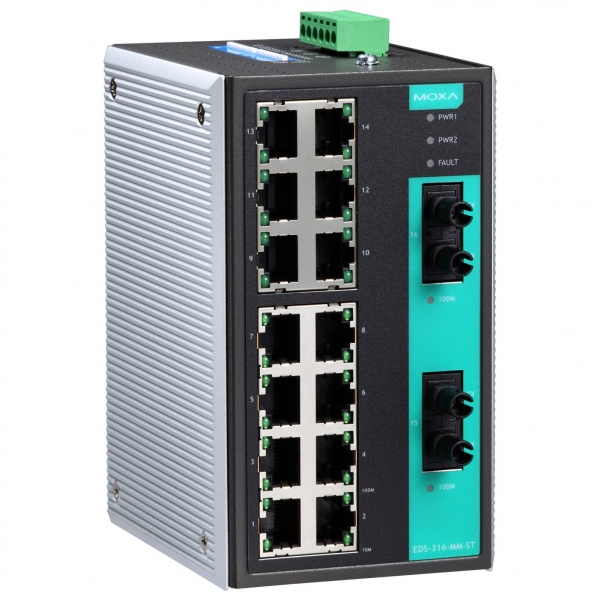

EDS-316-MM-ST

Unmanaged switch EDS-316-MM-ST houses 14 10/100 BaseT ports and 2 100BaseFX ports (multi-mode fiber, ST slot) to transmit data over a multi-mode fiber optical cable. The design envisages enhanced protection: an industrial grade metal housing that rates IP 30, a redundant power supply circuit, an alerting channel, protection against broadcast storms. Switch EDS-316-M-ST: description and features: The functions of direct (802.3x) and backward (Back Pressure) flow control prevent data loss in half-duplex and full-duplex modes by stopping the transmission in case of the receiving port buffer overflow. 802.3x Flow Control standard secures the support of full-duplex communication and compatibility with DIX. The dual power supply circuit actuates a backup accumulator when the main source fails. There is built-in protection against reverse polarity. The device can be incorporated into any network with voltage ranged from 10 to 60 V. The device consumes 10 W only, which will not load the network much. The electronic components are effectively protected by the IP30 industrial grade chassis from vibrations, shocks (МЭК-60068/IEC 60068), electrostatic exposure and impulse interference (EN-55022, EN-61000, FCC). EDS-316-MM-ST can be applied at any objects that require the construction of high speed flexible and scalable industrial network that requires data transfer over a single channel at the large distances. The notification system provides complete information on network status and informs about errors on early stage. The device can be easily operated in aggressive environment that is confirmed by the field-specific certificates. UL/cUL Class I Division 2 and ATEX Zone 2 certificates allow you to use the switch in explosion hazardous conditions of oil and gas recovery industry, whereas, DNV and GL certificates enable its marine application.
