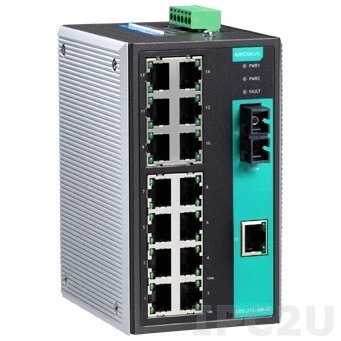

EDS-316-M-SC-T

EDS-316-M-SC-T

MOXA
SKU: 03278900
Industrial Ethernet Switch with 15 10/100BaseT(X) Ports, 1 Multi Mode 100Base FX Port, SC Type Connector, Extended Operating Temperature -40...+75°C, RoHS
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
1xSC, 15xRJ-45
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
4000
Packet Buffer Size
1.25 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
80.1 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, IEC 60945 4th, GL
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.32 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
1xSC, 15xRJ-45
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
4000
Packet Buffer Size
1.25 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
80.1 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, IEC 60945 4th, GL
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.32 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
1xSC, 15xRJ-45
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
4000
Packet Buffer Size
1.25 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
80.1 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, IEC 60945 4th, GL
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.32 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
1xSC, 15xRJ-45
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
4000
Packet Buffer Size
1.25 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
80.1 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, IEC 60945 4th, GL
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.32 kg
Documentation
EDS-316 Datasheet Quick Installation Guide EDS-316
Documentation
EDS-316 Datasheet Quick Installation Guide EDS-316
Documentation
EDS-316 Datasheet Quick Installation Guide EDS-316
Documentation
EDS-316 Datasheet Quick Installation Guide EDS-316
