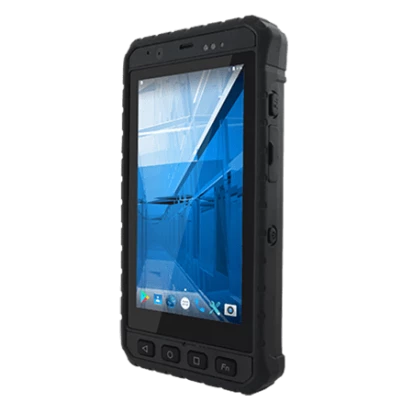

E500RM9
Winmate
SKU: 57629400
Rugged Industrial PDA, 5" 1280x720, P-CAP Touch, IP65, ARM 4xA73 + 4xA53 2.0GHz SoC, 4GB RAM, 64GB eMMC, Wi-Fi/BT, GPS, 1xMicroSD, 1xMicro USB, 2xSIM Slot, Audio, 8/13MP cam., 5VDC-in w/ Power Plug, 3.7V 3900mAh Bat., Android 11, -10..50C
Price on request
Available
Available
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
5 "
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
1
USB 2.0
1
Additional Functions
Camera Frontside
8 MP
Rear Camera
13 MP
NFC
Yes
Sensors
Light Sensor, Accelerometer, Gyro, E-compass
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xMicro USB, SD card slot, 2xSIM Card Slot
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
10 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3900 mA*h
RunTime Battery 1
20 h
Battery 1 Hotswap
Yes
Software
Operating System Installed
Android
Dimensions and weight
Width
85.9 mm
Height
163.2 mm
Depth
22.5 mm
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
0.32 kg
Gross Weight
0.7 kg
