DT362GL-Rugged-Handheld--M
DT Research
SKU: 80165900

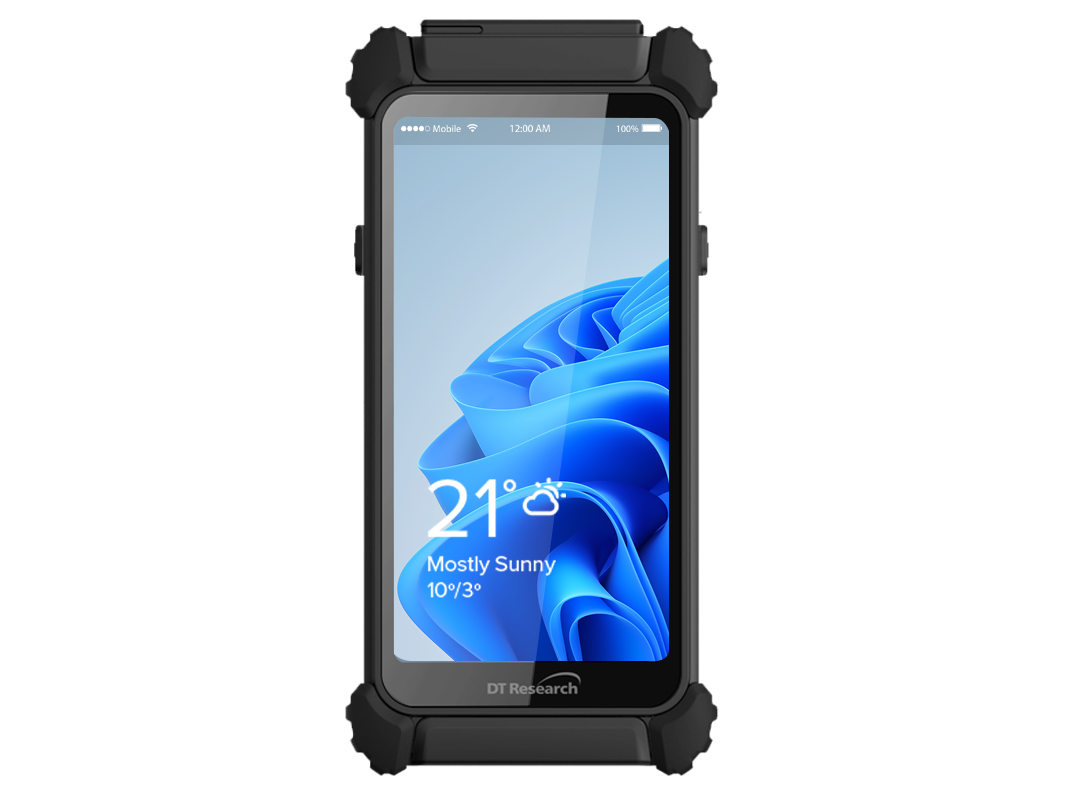

6" Handheld Rugged Tablet, IP65, 720x1440, 350cd/m2, PCAP Touch, Intel Pentium Silver 4-Core CPU, 8GB LPDDR5 RAM, 256GB Storage, 1xUSB-C, Smart Card, WiFi/BT, Opt. (GPS/NFC/RFID/2D Barcode/LR Barcode/Cam), 3100mAh Bat., 20VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
720x1440 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
Flash
1st Storage Capacity
256 GB
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
-10..50 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
FCC Class B, rohs
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
720x1440 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
Flash
1st Storage Capacity
256 GB
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
-10..50 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
FCC Class B, rohs
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
720x1440 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
Flash
1st Storage Capacity
256 GB
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
-10..50 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
FCC Class B, rohs
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
720x1440 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
Flash
1st Storage Capacity
256 GB
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
-10..50 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
FCC Class B, rohs
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
