H68T-6.56-inch-Handheld--M
ONERugged
SKU: 80218300

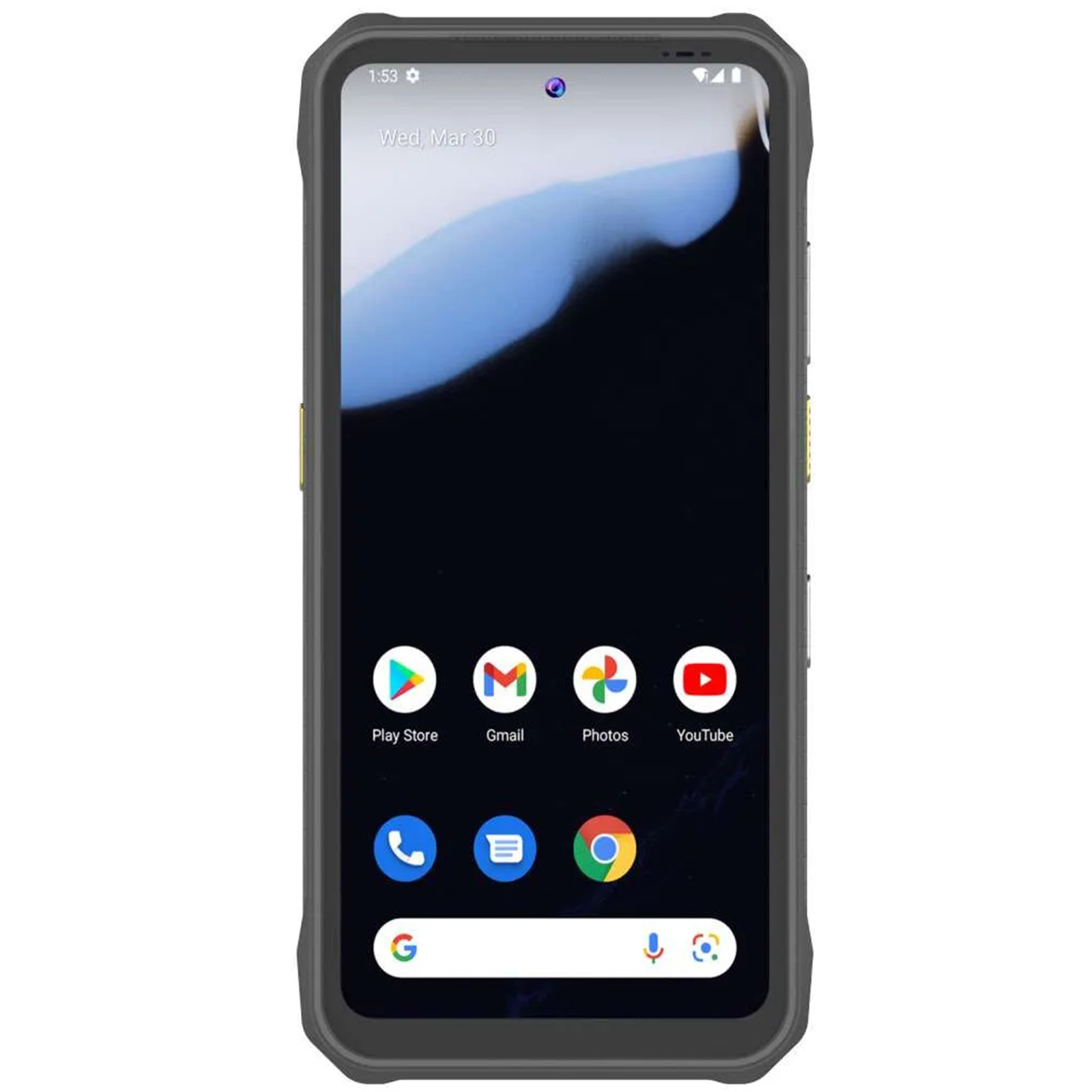

6.56" Rugged Handheld, 720x1612, 670 cd/m2, PCAP Touch, IP68, ARM Octa-Core MT6789 CPU, 8GB RAM, 128GB Storage, USB 2.0 Type-C, TF slot, 2xNano-SIM slot, Opt: (Barcode), NFC, LTE/GPS, WiFi/BT, 48MP/32MP Cam, 5800mAh, Android 14, -20..60C
425,27 €
Price excl. VAT and shipping cost
Available
Available
Construction
Construction Chassis
Plastic Chassis
Protection Level of Front Side (Panel)
IP68
Protection Level of Chassis
IP68
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6.56 "
Maximum resolution
1612x720 Dots
Brightness
670 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Mediatek MT6789
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB 2.0
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Micro-SIM
Additional Functions
Camera Frontside
32 MP
Rear Camera
48 MP
GPS
GPS, GLONASS
Barcode Scanner
Yes
NFC
Yes
Fingerprint Scanner
Yes
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v5.1
LED / Controls
Controls
On/Off, Control Buttons, Volume Keys
Connectors
Connectors
USB type C
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
33 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5800 mA*h
RunTime Battery 1
17 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
80.7 mm
Height
170.2 mm
Depth
14 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Temperature (Storage)
-30~+70
Dimensions
Net Weight
0.31 kg
Gross Weight
0.6 kg
