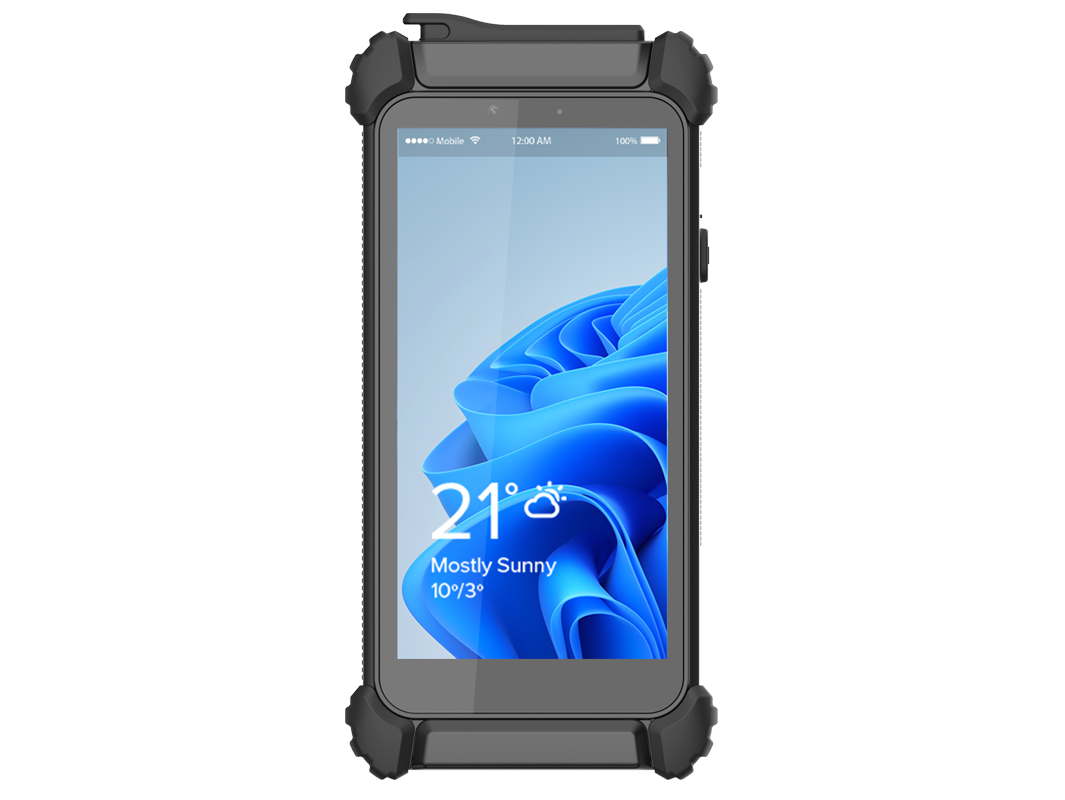

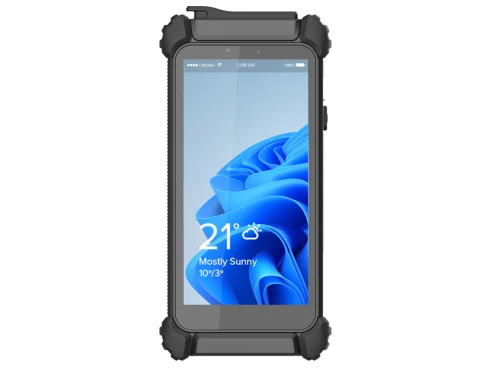

DT362D-Rugged-Handheld--M
DT Research
SKU: 80165600
6" Handheld Rugged Tablet, IP65, 2160x1080, 850cd/m2, PCAP Touch, Intel Core N200/N300 CPU, 16GB LPDDR5 RAM, 512GB Storage, 1xGbE LAN, 1xUSB-C, Smart Card, MicroSD, WiFi/BT, F/R Cam Opt., Opt. (GPS/NFC/RFID/Barcode), 3100mAh Bat., 20VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
1080x2160 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N200, Intel Core i3-N300
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Bluetooth
v5.3
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Safety
UL
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
1080x2160 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N200, Intel Core i3-N300
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Bluetooth
v5.3
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Safety
UL
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
1080x2160 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N200, Intel Core i3-N300
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Bluetooth
v5.3
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Safety
UL
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
1080x2160 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N200, Intel Core i3-N300
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Bluetooth
v5.3
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
3100 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
95 mm
Height
192 mm
Depth
31 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Safety
UL
Dimensions
Net Weight
0.49 kg
Gross Weight
0.88 kg
Documentation
Documentation
Documentation
Documentation
