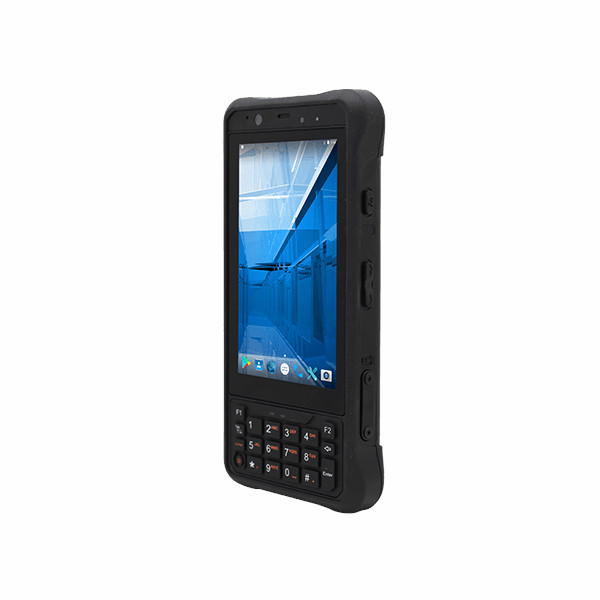

E500QK
Winmate
SKU: 57629300
Rugged Industrial PDA, 5" 1280x720, P-CAP Touch, IP67, Qualcomm Snapdragon 660 2.2GHz SoC, 3GB RAM, 32GB eMMC, Wi-Fi/BT, GPS, 1xMicroSD, 1xUSB Type-C, Keyboard, Audio, 8/13MP cam., 5VDC-in w/ Adapter & Cable, 3.7V 3900mAh Bat., Android 9, -10..50C
Price on request
Available
Available
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fanless
Display
Display Type
LCD
Diagonal
5 "
Maximum resolution
1280x720 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
3 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
1
USB v3.x
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Additional Functions
Camera Frontside
8 MP
Rear Camera
13 MP
GPS
GPS
NFC
Yes
Sensors
Light Sensor, Accelerometer, Gyro, E-compass
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
Keyboard / Pointing Devices
Type Keyboard
Dustproof
Number of Keys
19
Layout
English US
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
5 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3900 mA*h
RunTime Battery 1
20 h
Battery 1 Hotswap
No
Software
Operating System Installed
Android
Dimensions and weight
Width
92 mm
Height
192 mm
Depth
29.25 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Shock
MIL-STD-810G Method 516.6 Procedure I
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
0.37 kg
Gross Weight
0.76 kg
