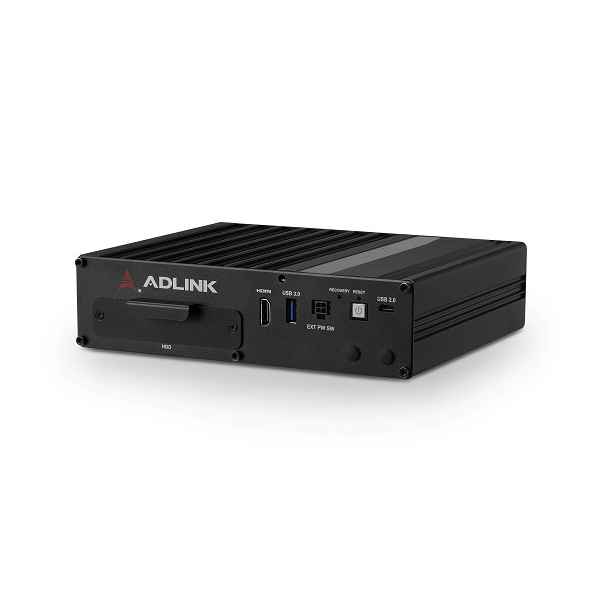

DLAP-301-JNX

DLAP-301-JNX

ADLink
SKU: 09155100
Edge Computer with NVIDIA Jetson Xavier NX, 8GB LPDDR4 RAM, 16GB eMMC 5.1, HDMI, 1xGbE, 8xPoE, 2xCOM, 3xUSB 3.0, 1xUSB 2.0 OTG, DIO, 2.5" SATA SSD bay, 12VDC-in, -20...70C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex
Memory
Form-factor
DDR4
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
USB Total
3
USB 2.0
1
USB v3.x
2
Drive interfaces
MicroSD
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input, 1xMicro USB
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
147 mm
Height
52 mm
Depth
118 mm
Operating Conditions
Operating Temperature
-30..50 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
