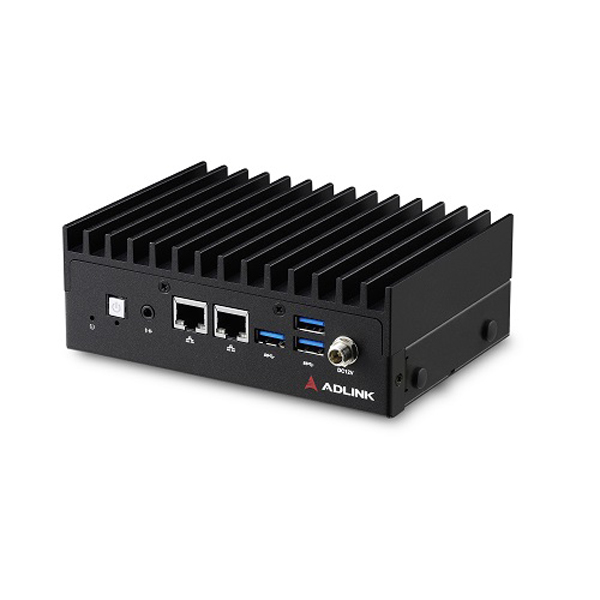

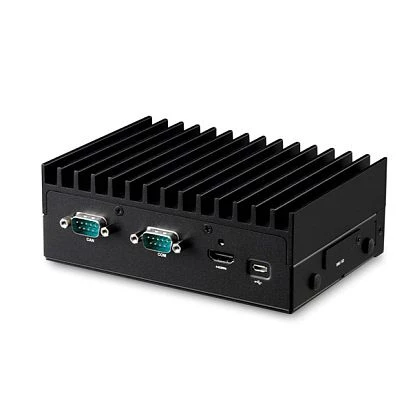

DLAP-201-JT2

DLAP-201-JT2

ADLink
SKU: 09144700
Edge Computer with NVIDIA Jetson TX2, 8GB RAM, 32GB eMMC, 2xGbE, 1xCOM, 1xCAN, 3xUSB 3.0, 1xUSB 2.0 OTG, DIO, mSATA, SD, USIM, PCIe Mini, 12VDC-in, -20...70C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Arm
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
ARM Cortex
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Nvidia MAC 10/100/1000 Mbps, Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
USB Total
1
USB 2.0
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 1xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
141.6 mm
Height
55 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-30..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
