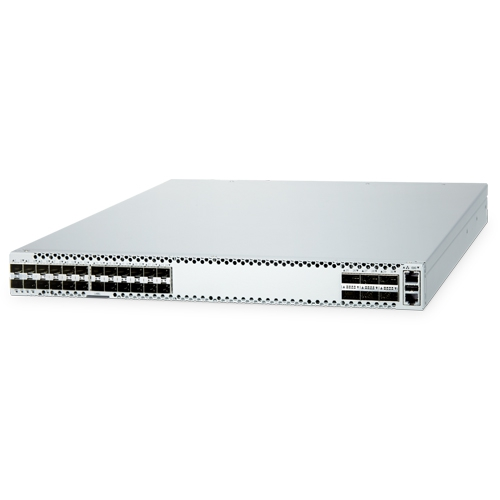

DCS-7342-24X6C
Planet
SKU: 80263200
Industria Layer 3 Managed Data Center Switch, 1x10/100/1000Base-T, 24x10GBase-X SFP+, 6x100G QSFP28, 1xUSB, 100..240 VAC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
10 Gbit SFP+ Ports
24
QSFP+ 100 Gigabit/s Ethernet
6
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, QoS, DHCP, SNTP, GVRP, RMON, TFTP, CoS, ARP, Proxy ARP, FTP, IGMP Snooping v1/v2/v3
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
410 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-90%
Standards and Certifications
Certifications
FCC Class A
Dimensions
Net Weight
7.1 kg
Gross Weight
8.1 kg
