CSM-200-1218
MOXA
SKU: 05595300

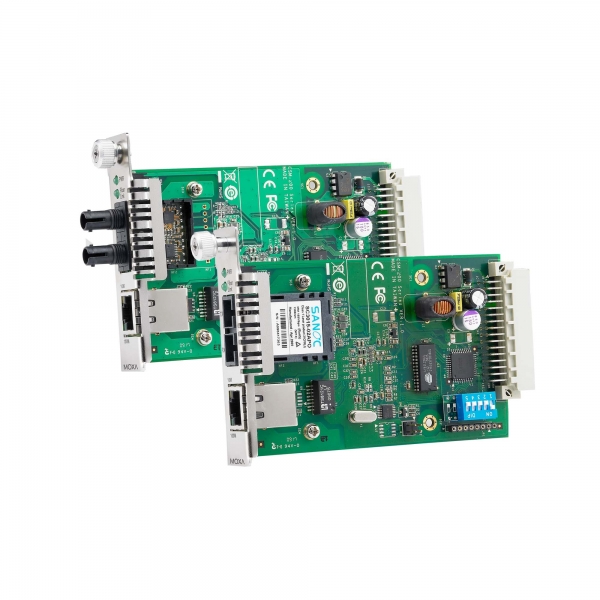

10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
single-mode
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Link Fault Pass-Through (LFP)
LED / Controls
LED
Power LED, 10/100M LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
86.8 mm
Depth
21 mm
Height
124.3 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Safety
UL 60950-1
Dimensions
Gross Weight
0.2 kg
