CS-6303R

CS-6303R

Planet
SKU: 80068900

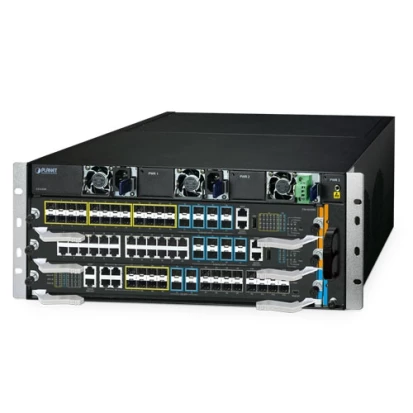

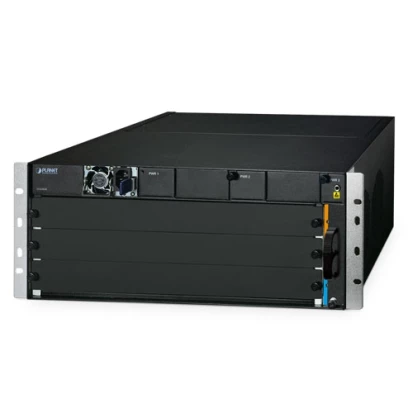

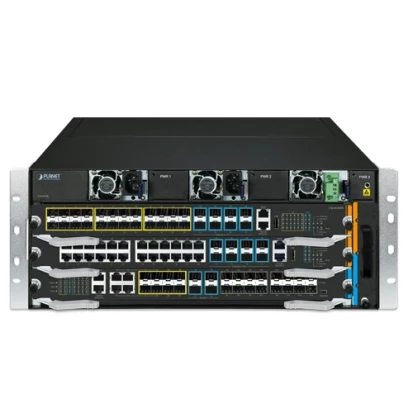

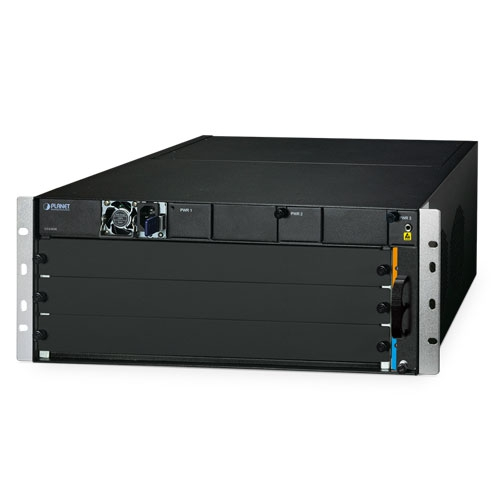

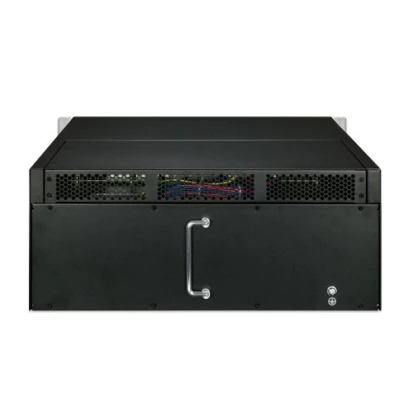

Layer 3 Routing Chassis Switch with 3 module slots: up to 2 management, up to 2 switch modules, 1xFan Tray, 1xPSU + 2xRedundant bays 100..240V AC/36..72V DC, 0..50 Operating temp.
Price on request
Available
Available
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.2 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
Syslog, Telnet, QoS, DHCP, GVRP, RMON, TFTP, IGMP Snooping v1/v2/v3, IGMP Querier
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Construction
Height
4 U
Dimensions and weight
Width
482.6 mm
Depth
376.2 mm
Height
178.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
14.4 kg
Gross Weight
16 kg
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.2 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
Syslog, Telnet, QoS, DHCP, GVRP, RMON, TFTP, IGMP Snooping v1/v2/v3, IGMP Querier
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Construction
Height
4 U
Dimensions and weight
Width
482.6 mm
Depth
376.2 mm
Height
178.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
14.4 kg
Gross Weight
16 kg
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.2 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
Syslog, Telnet, QoS, DHCP, GVRP, RMON, TFTP, IGMP Snooping v1/v2/v3, IGMP Querier
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Construction
Height
4 U
Dimensions and weight
Width
482.6 mm
Depth
376.2 mm
Height
178.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
14.4 kg
Gross Weight
16 kg
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.2 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
Syslog, Telnet, QoS, DHCP, GVRP, RMON, TFTP, IGMP Snooping v1/v2/v3, IGMP Querier
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Construction
Height
4 U
Dimensions and weight
Width
482.6 mm
Depth
376.2 mm
Height
178.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
14.4 kg
Gross Weight
16 kg
Documentation
CS-6303R-Datasheet.pdf CS-6303R-User-Manual.pdf
Documentation
CS-6303R-Datasheet.pdf CS-6303R-User-Manual.pdf
Documentation
CS-6303R-Datasheet.pdf CS-6303R-User-Manual.pdf
Documentation
CS-6303R-Datasheet.pdf CS-6303R-User-Manual.pdf
