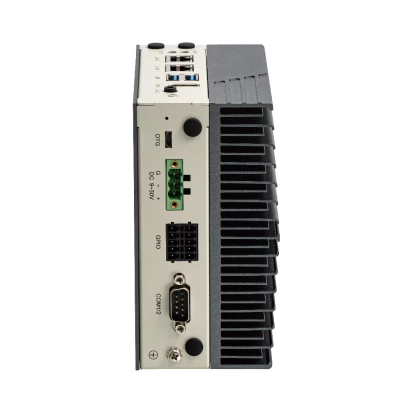

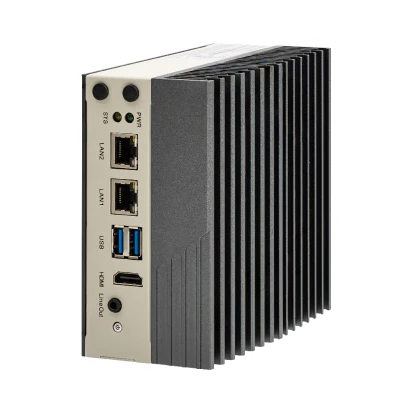

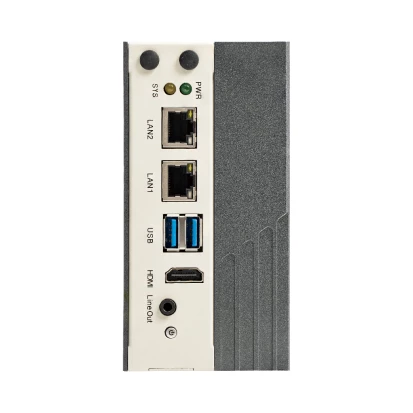

Coeus-3801T-8G

Coeus-3801T-8G

NEXCOM
SKU: 10969000
Fanless AI System, NVIDIA Jetson Orin NX 6-core SoC, NVIDIA Ampere 1024-core GPU, 8GB LPDDR5 RAM, 128GB SSD, 1xHDMI, 2xGbE LAN, 2xUSB 3.0, 8-bit GPIO, 2xCOM, OTG, MicroSD, Audio, 1xM.2 2280 Key-M, 1xM.2 3052 Key-B, 1xMini-PCIe, 9-30VDC-in
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (6-Core)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SYSTEM LED indicator
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), MicroSD card slot, Console Port Micro USB
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
70.4 mm
Height
176 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
2.1 kg
Gross Weight
2.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (6-Core)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SYSTEM LED indicator
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), MicroSD card slot, Console Port Micro USB
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
70.4 mm
Height
176 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
2.1 kg
Gross Weight
2.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (6-Core)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SYSTEM LED indicator
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), MicroSD card slot, Console Port Micro USB
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
70.4 mm
Height
176 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
2.1 kg
Gross Weight
2.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (6-Core)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SYSTEM LED indicator
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), MicroSD card slot, Console Port Micro USB
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
70.4 mm
Height
176 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
2.1 kg
Gross Weight
2.4 kg

Documentation
Coeus-3801T-User-Manual.pdf Coeus-3801T Datasheet
Documentation
Coeus-3801T-User-Manual.pdf Coeus-3801T Datasheet
Documentation
Coeus-3801T-User-Manual.pdf Coeus-3801T Datasheet
Documentation
Coeus-3801T-User-Manual.pdf Coeus-3801T Datasheet
