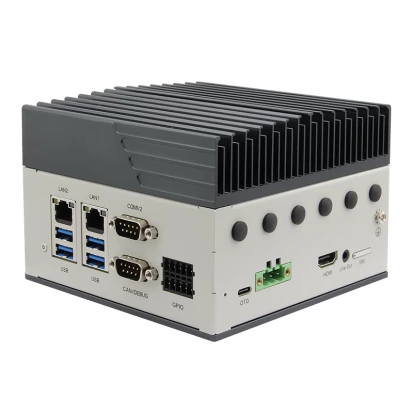

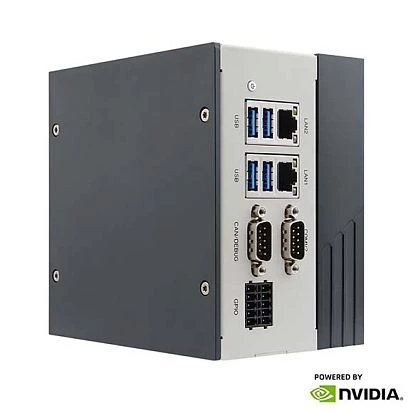

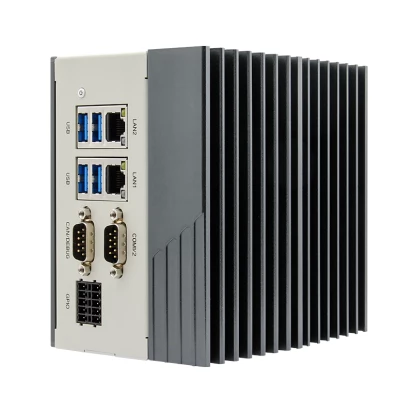

Coeus-3721T-4G
NEXCOM
SKU: 80101400
Fanless Edge AI System, NVIDIA Jetson Orin NX Nano 6-core SoC, NVIDIA Ampere 512-core GPU, 4GB LPDDR5 RAM, 128GB SSD, HDMI, 2xGbE LAN, 4xUSB 3.0, 1xUSB-C OTG, 2xCOM, CAN, 8-bit GPIO, MicroSD, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 9-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX Nano (6-core Arm Cortex A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 512-cores, 16 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, SIM Card Slot, DC input (terminal block), GPIO (terminal block), 1xCAN Bus, USB type C
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 5.x, Ubuntu 22.04
Dimensions and weight
Width
176 mm
Height
91.3 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.1 kg
Gross Weight
2.4 kg
