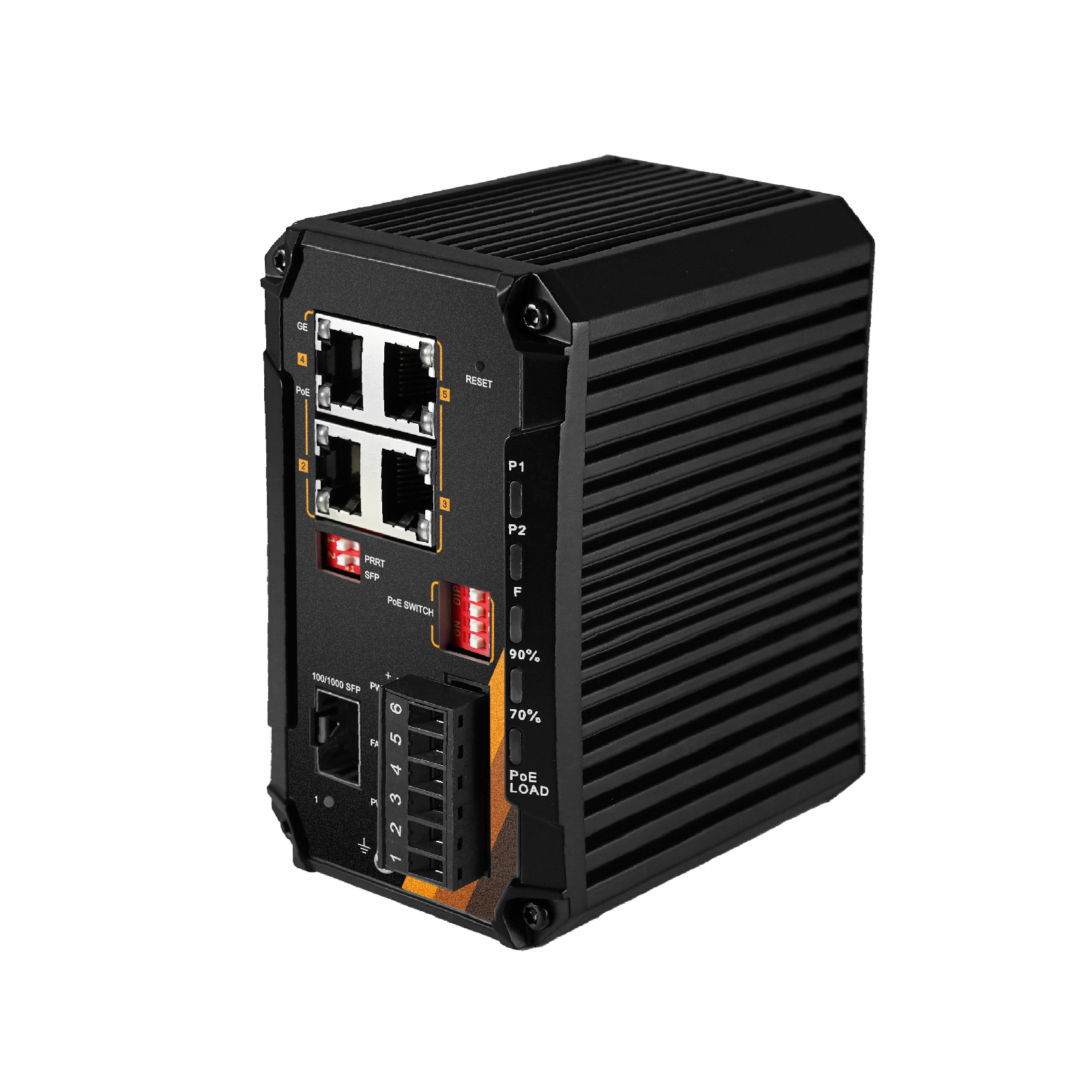

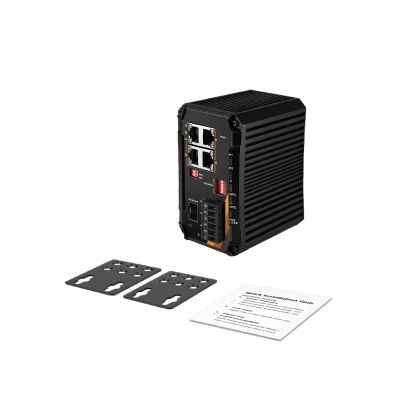

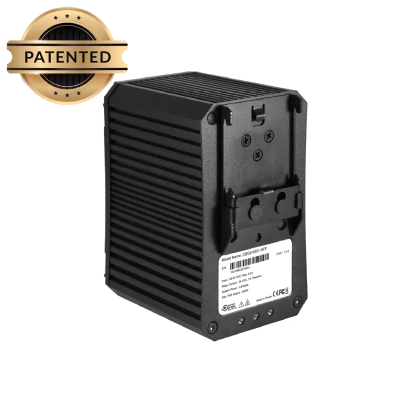

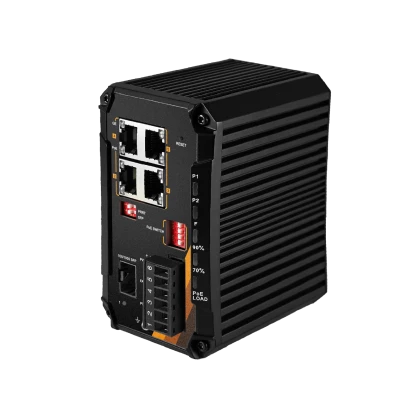

CBG2-0501-SFP
Leonton
SKU: 80256100
Industrial Compact Unmanaged Ethernet PoE Switch, IP40, 4x10/100/1000Base-TX with PoE, 1x100/1000Base-X SFP, Dual 48..55VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
1
PoE 10/100/1000 Mbit/s
4
Power Budget
90 W
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
64.9 mm
Depth
110 mm
Height
89.8 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
