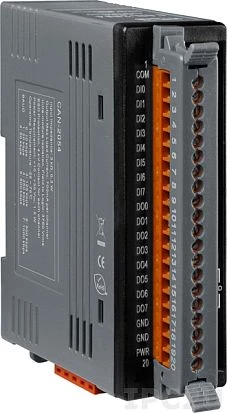

CAN-2054
ICP DAS
SKU: 06402500
Digital I/O Module, CCON Slave
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Supported Protocols
Industrial Protocols
CAN
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
