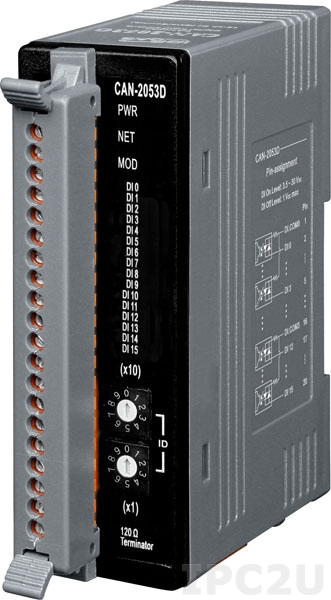

CAN-2053D
ICP DAS
SKU: 05625000
16-Channel Isolated Sink/Source Digital Input, DeviceNet slave module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
DeviceNet
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
DeviceNet
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
DeviceNet
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
DeviceNet
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
