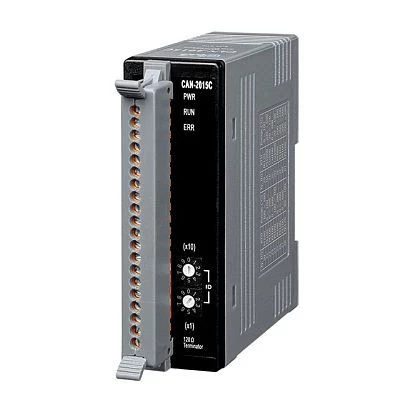

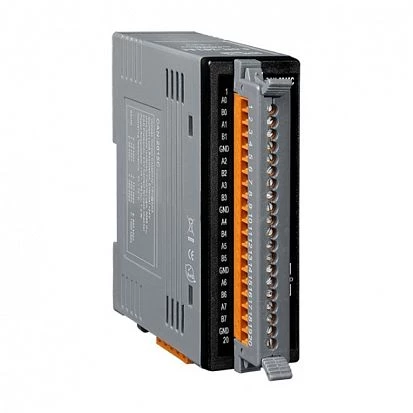

CAN-2015C

CAN-2015C

ICP DAS
SKU: 06124700
8-Channel RTD Input module, CANopen Slave
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
10 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
10 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
10 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
10 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg

Documentation
datasheet can-2015c DataSheet CAN-2015C Usermanual
Documentation
datasheet can-2015c DataSheet CAN-2015C Usermanual
Documentation
datasheet can-2015c DataSheet CAN-2015C Usermanual
Documentation
datasheet can-2015c DataSheet CAN-2015C Usermanual
