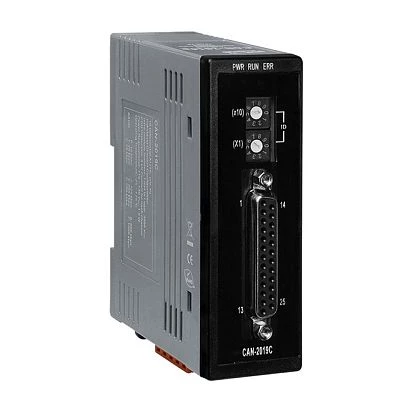

CAN-2019C/S
ICP DAS
SKU: 06753100

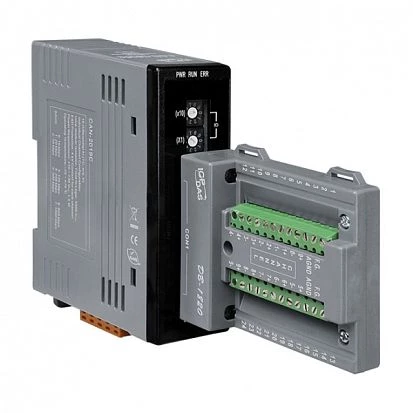

CANopen Slave Module of 10-channel Universal Analog Input Include CAN-2019C module and a DB-1820 daughter board
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
10
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
10
Thermocouple
K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, J: -210 ... +1200°C, R: -50 ... +1765°C, S: -50 ... +1765°C
Connectors
Connectors
DB25
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
99 mm
Height
78 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
10
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
10
Thermocouple
K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, J: -210 ... +1200°C, R: -50 ... +1765°C, S: -50 ... +1765°C
Connectors
Connectors
DB25
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
99 mm
Height
78 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
