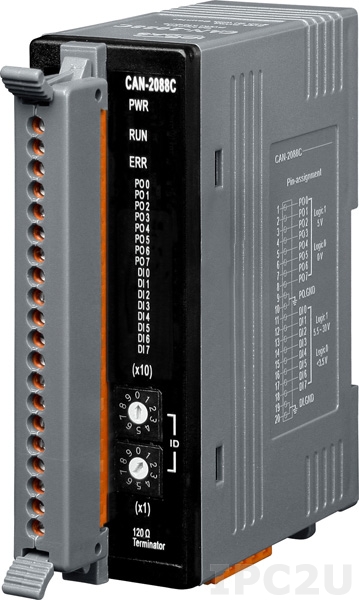

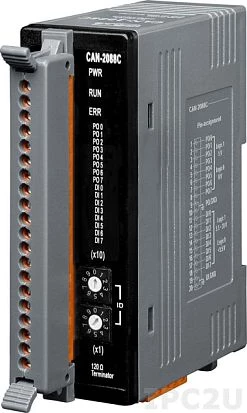

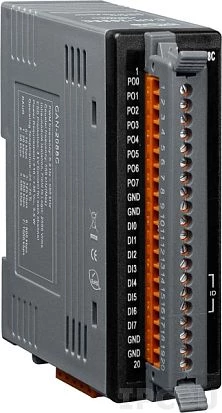

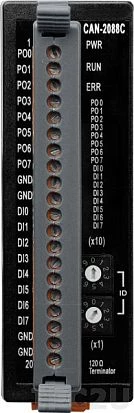

CAN-2088C
ICP DAS
SKU: 05750200
CANopen module of 8-channel PWM and 8-channel High Speed Counter
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~3.5 V
Level of Logic "1"
5.5~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
2500 V
Number of channels
8
Signal Type
Wet: Sink
Counter capacity
32 Bit
Max frequency
500 kHz
Digital Output
Channels
8
Signal Type
PWM: Source
Output frequency range
0.0002~500 kHz
Output Voltage
5 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.27 kg
