CAN-2017C

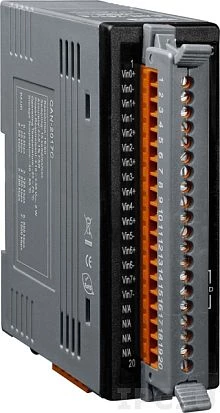

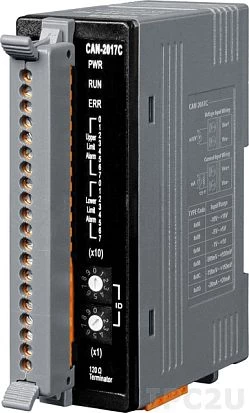

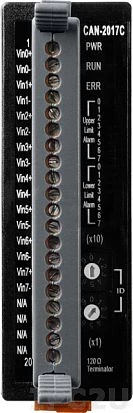

CAN-2017C

ICP DAS
SKU: 05895900
8-Channel 16-bit analog input module, CANopen
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
CAN Port
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
CANopen
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
102 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.51 kg
