BSP-115HP-5A
Planet
SKU: 57988000

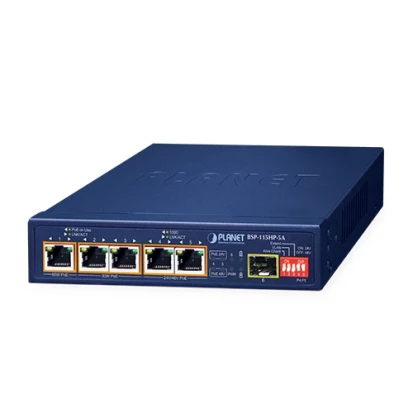

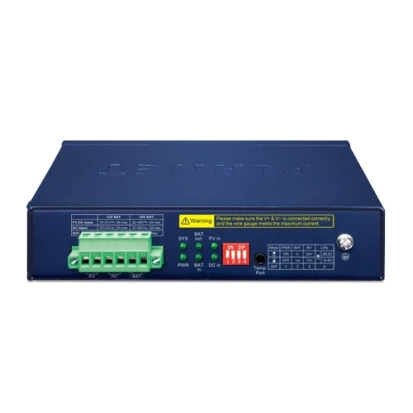

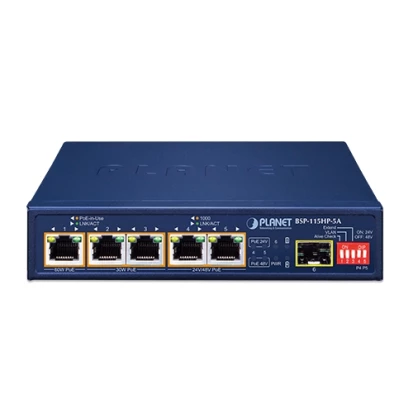

Ethernet Switch, IP30, 5x10/100/1000Base-T with PoE, 1x100/1000Base-X SFP, Temperature Detector -20..100C , Supports 15..27 or 32..45 V, Operating Temperature -20..65 C
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
1
PoE+ 10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
32..45 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
159.01 mm
Depth
141.8 mm
Height
34 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.69 kg
Gross Weight
1.7 kg
Ethernet
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
1
PoE+ 10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
32..45 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
159.01 mm
Depth
141.8 mm
Height
34 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.69 kg
Gross Weight
1.7 kg
Ethernet
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
1
PoE+ 10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
32..45 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
159.01 mm
Depth
141.8 mm
Height
34 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.69 kg
Gross Weight
1.7 kg
Ethernet
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
1
PoE+ 10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
32..45 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
159.01 mm
Depth
141.8 mm
Height
34 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.69 kg
Gross Weight
1.7 kg
