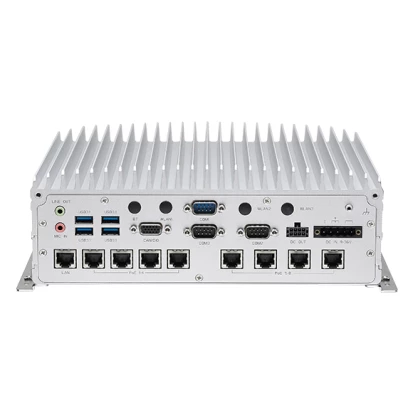

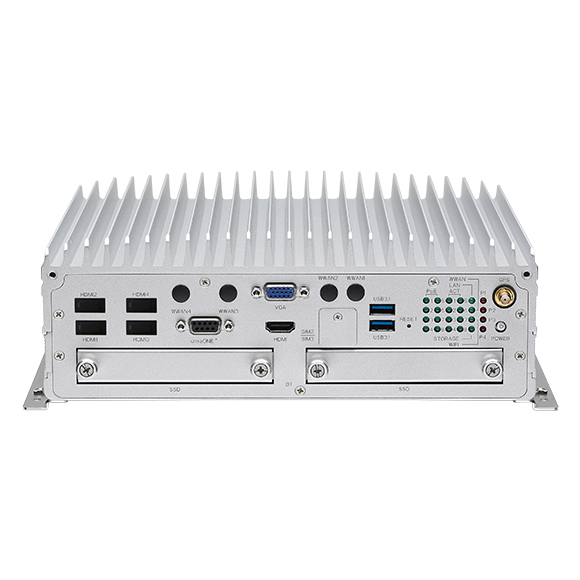

ATC-8010
NEXCOM
SKU: 80092500
Embedded Fanless ATC-8010 System, Intel 9/8th Gen CPU, Up to 64GB DDR4 RAM, MXM Kit (optional), HDMI, VGA, 1xGbE LAN, 8xPoE LAN, 3xCOM, 1xUltraONE+, 6xUSB 3.2, DB15 (CAN, 8-bit DIO), 2x2.5" Bay, 3xMiniPCIe, 1xM.2 Key-B, Audio, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
9
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
8
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
RAID Levels
0, 1, 5, 10
mSATA
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
4
M.2
1
M.2 Form Factor
3042 B
Mini-PCIe/Mini Card
3
Additional Functions
GPS
GPS, GLONASS
Watchdog timer type
Software
LED / Controls
LED
PoE LED, WLAN LED, LAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, 1xDB15 DIO, DC input (terminal block), 12V DC Output, 9xRJ45 Ethernet
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
260 mm
Height
90.1 mm
Depth
256 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Automotive
e13 Mark
Dimensions
Net Weight
7.5 kg
Gross Weight
8.5 kg
