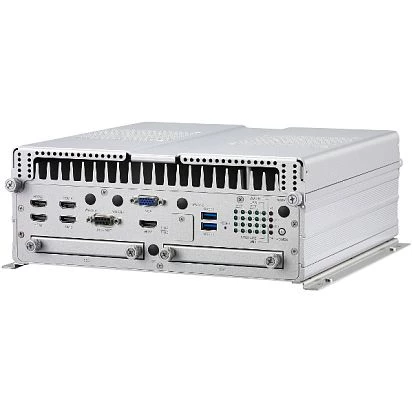

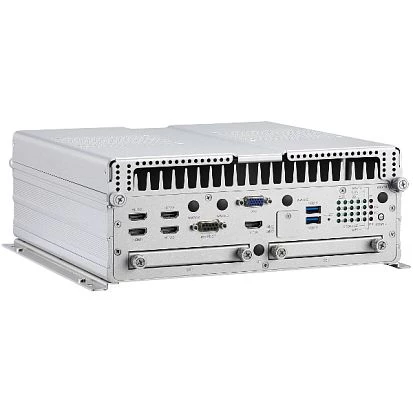

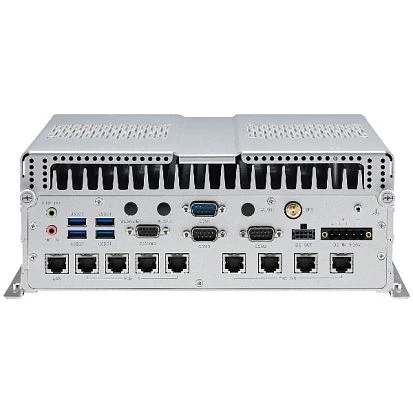

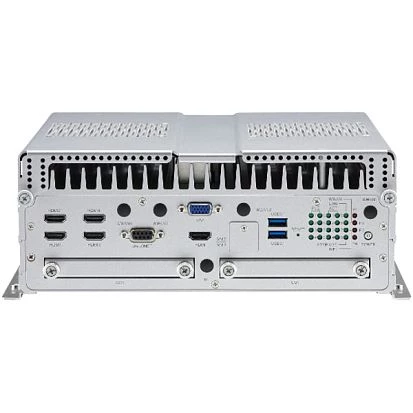

ATC-8010-7A

ATC8010-7A AI Vehicle PC with Intel Core i3/i5/i7 CPU, NVIDIA GeForce graphics card, up to 64GB DDR4 RAM, Dual LAN, 8x PoE, 2x HDD/SSD The ATC8010-7A is a powerful and reliable industrial embedded and automotive PC that integrates artificial intelligence (AI) with high computing and learning performance using a dedicated NVIDIA GeForce GTX 1050Ti graphics card as a coprocessor, and also serves as a universal platform for connectivity to various peripherals including USB, serial and IP devices. For high basic performance, the ATC8010-7A embedded computer uses an Intel Core i7-8700T with six cores and a clock speed of up to 4.00 GHz on 12 virtual threads. The vehicle PC combines this with a main memory of up to 64GB DDR4 RAM and two SATA 3 HDD/SSD in 2.5'' drive bays, which can be used separately or as a group within a hardware RAID. The fast data analysis by an artificial intelligence (AI) is enabled by the integration of a dedicated NVIDIA GeForce GTX 1050Ti graphics card with a dedicated 4GB GDDR5 RAM as MXM module. The network connections of the ATC8010-7A includes a separate LAN port as central up- or downlink and eight additional PoE+ LAN interfaces as RJ45-ports with 10/100/1000 Mbit/s for peripheral IP devices. These are supplemented by common standards for a vehicle PC such as four SIM slots, NEO-M8N GNSS GPS, Bluetooth and WLAN 802.11. The application spectrum of the ATC8010-7A with dedicated NVIDIA GeForce graphics card covers a wide range of scenarios, from industrial automation and data analysis under harsh conditions to autonomous driving using artificial intelligence (AI).
