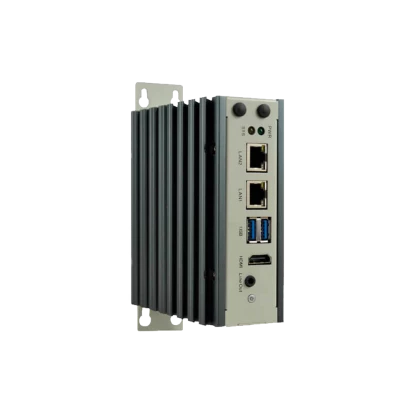

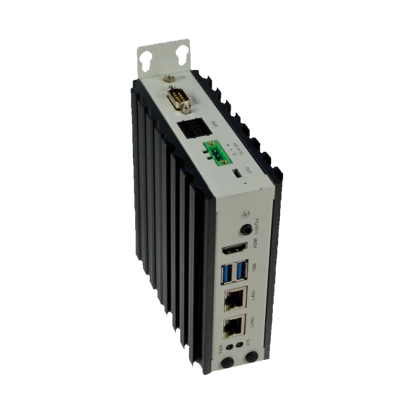

AIGE-102
NEXCOM
SKU: 57492200
Fanless Embedded Server, NVIDIA Carmel ARM CPU, NVIDIA Voltal GPU, 8GB 128-bit LPDDR4x RAM, 16GB eMMC Storage, 1xHDMI, 2xGbE LAN, 1xCOM, 2xUSB 3.0, 1x8-bit GPIO, 1xMiniPCIe, Audio, 1xMicroSD, 2xM.2, 1xOTG, 1xCAN, 9~30V DC-in Terminal block, -10..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Volta GPU, 384-Core, 48 Tensor Cores
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors

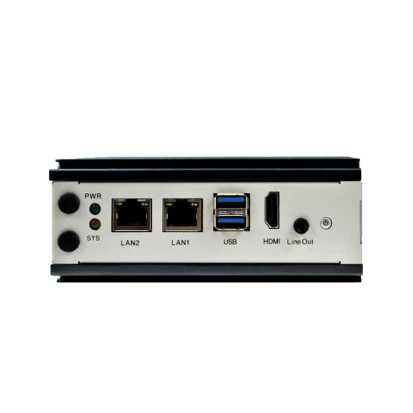

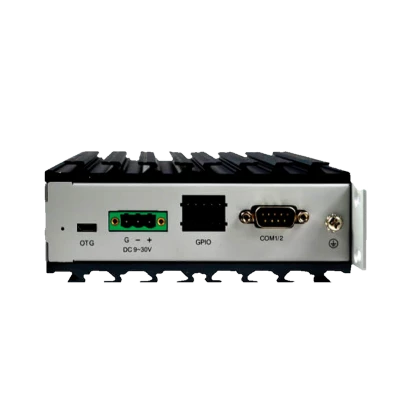

DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), Console Port Micro USB
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Ubuntu
Dimensions and weight
Width
137 mm
Height
52.4 mm
Depth
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.04 kg
Gross Weight
1.6 kg
