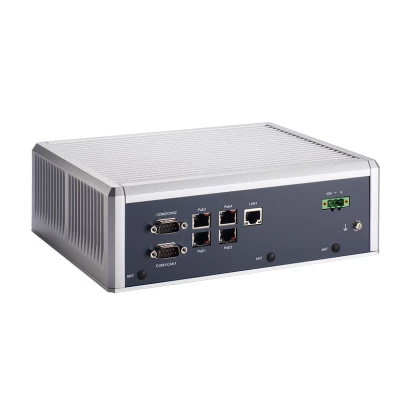

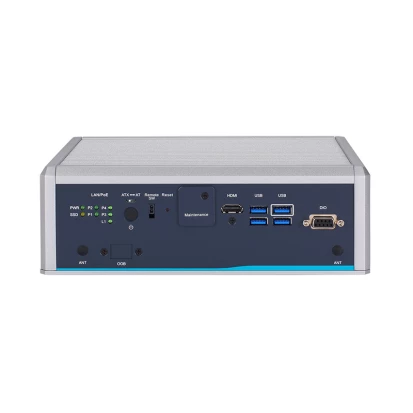

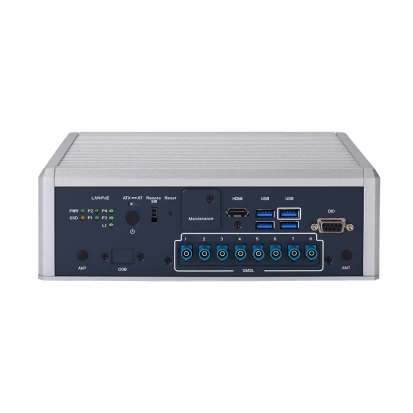

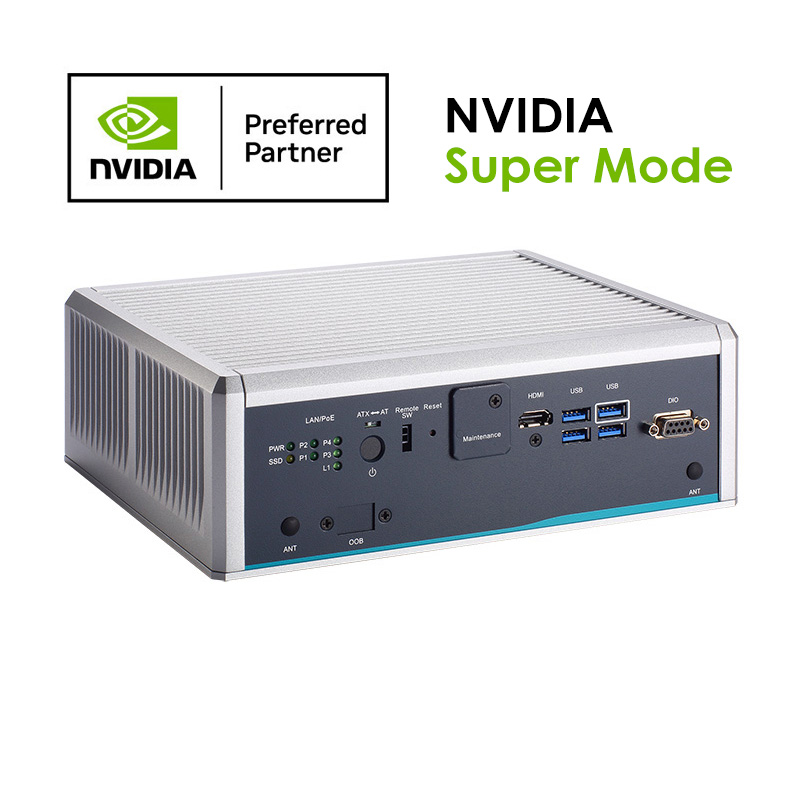

AIE900B-ONX-1L4P
AXIOMTEK
SKU: 80199300
Fanless Edge AI Box PC, NVidia Jetson Orin NX 8-core SoC, NVIDIA Ampere 1024-core GPU, 16GB LPDDR5 RAM, 1xHDMI, 1xGbE LAN, 4xGbE PoE LAN, 4xUSB 3.2, 2xCOM, 8-bit DIO, 8xGMSL Opt., MiniPCIe, M.2 2280 Key-M, M.2 3042/52 Key-B, SIM, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, PoE+ LED, LAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 5xRJ45 Ethernet, 4xUSB, SIM Card Slot, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 22.04
Dimensions and weight
Width
239 mm
Height
185.3 mm
Depth
79.4 mm
Operating Conditions
Operating Temperature
-25..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
2.54 kg
Gross Weight
4.59 kg
