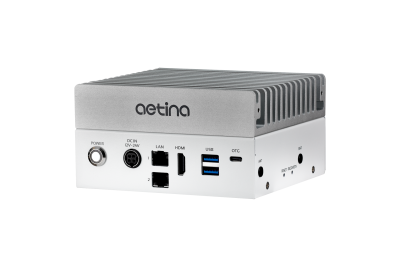

AIE-PO22/AIE-PO32--M
AETINA
SKU: 80242500
Embedded Edge AI Box PC, NVIDIA Jetson Orin Nano 6-Core SoC, Ampere 512/1024-Core GPU, 4/8GB LPDDR5 RAM, 128GB M.2 SSD, HDMI, 2xGbE LAN, 2xUSB 3.2, 1xUSB Type-C OTG, 2xCOM, 1xCAN, 1xDB15 (5-bit GPIO, I2C, UART), 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.7 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 512-cores, 16 Tensor Cores, NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
USB Total
3
USB v3.x
3
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, USB type C, DB15 Multi-port, DB9 CAN
System Power Input
Input Voltage DC
12..24 V
Power Consumption
26 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 20.04
Dimensions and weight
Width
135 mm
Height
89 mm
Depth
124 mm
Operating Conditions
Operating Temperature
-25..55 °C
Humidity
10-95%
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 msduration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.54 kg
Gross Weight
0.95 kg
