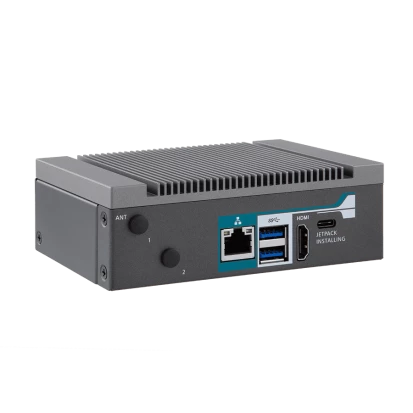

AEC-2000-4GB
Arbor
SKU: 80219500
Fanless Edge AI Box PC, NVIDIA Jetson Orin Nano 8-Core SoC, 4GB LPDDR5 RAM, NVIDIA Ampere 512-Core GPU, 128GB NVME SSD, HDMI, 1xGbE LAN, 2xUSB 3.2, 1xUSB Type-C 2.0, 9-bit DIO, 2xI2C, 1xUART, 1xM.2 Key-E, 9-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.5 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 512-cores, 16 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
9
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
HDMI, RJ45 Ethernet, 2xUSB, DC Input, DIO (terminal block), USB type C
System Power Input
Input Voltage DC
9..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
130 mm
Height
49 mm
Depth
82 mm
Operating Conditions
Operating Temperature
-25..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810H Test Method 516.8 Shock
Dimensions
Net Weight
1.2 kg
Gross Weight
2 kg
