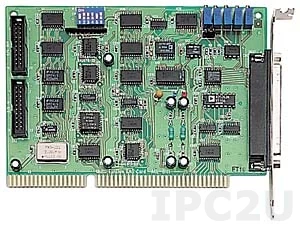

ACL-8111
ADLink
SKU: 01016300
Multifunction Adapter ISA, 8SE ADC, 1 DAC, 16DI, 16DO, Timer
Price on request
Available
Available
System Architecture
System Bus
ISA
Analog Input
Total channels of analog input
8
Single-Ended channels
8
Number of Bits
12 Bit
Sampling rate
50 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V
Analog Output
Channels of analog input
1
Voltage range
0...5 V, 0...10 V, +/-10 V
Digital Input
Total channels of digital input
16
Level of Logic "0"
2~5 V
Level of Logic "1"
0~0.8 V
Number of channels
1
Max frequency
2 kHz
Digital Output
Total channels of digital output
16
Connectors
Connectors
DB37 Female
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.4 kg
