ABOX-5200G4-i3

ABOX-5200G4-i3

SINTRONES
SKU: 56789100

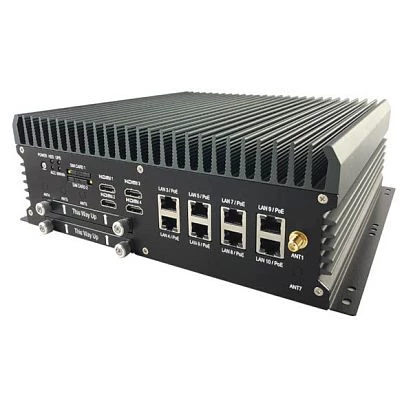

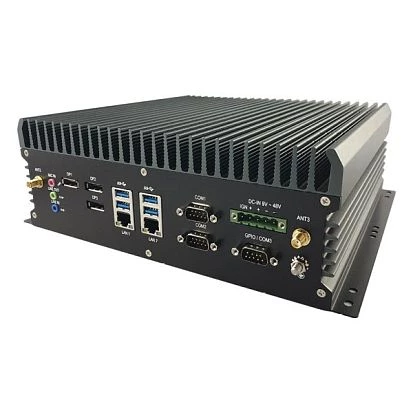

In-Vehicle Fanless Computer with Intel 8th Gen Core i3-8100T,3.1GHz, NVIDIA GeForce GTX 1060 1280 CUDA cores GPU, 2x2.5" Bays, mSATA, 4xHDMI, 3xDP, 10xGbE, 3xCOM, 4xUSB 3.0, 3xMini PCIe, M.2A-E key, 2xSIM, 9-48V DC-in, Operating Temp. -40...+70C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-8700T
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Nvidia GeForce GTX 1060
Ethernet
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
5.25 kg
Gross Weight
7.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-8700T
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Nvidia GeForce GTX 1060
Ethernet
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
5.25 kg
Gross Weight
7.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-8700T
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Nvidia GeForce GTX 1060
Ethernet
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
5.25 kg
Gross Weight
7.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-8700T
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Nvidia GeForce GTX 1060
Ethernet
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
5.25 kg
Gross Weight
7.8 kg
