ABOX-5000G-i7

ABOX-5000G-i7

SINTRONES
SKU: 56881700

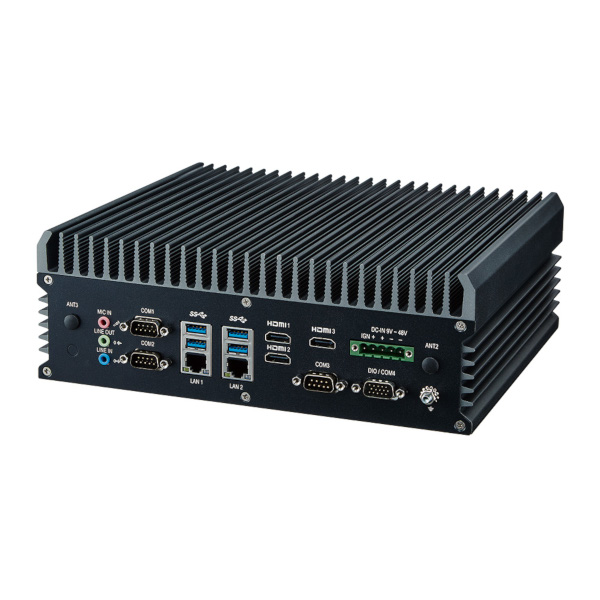

In-Vehicle Fanless Computer with Intel Gen6/7 Core i7-6700TE 2.4GHz CPU, 7xHDMI, 6xGbE, 3xCOM, 4xUSB 3.0, AMD Radeon E9260 GPU, 9-48V DC-in, Operating Temp. -40...+70C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
AMD Radeon E9260
Ethernet
10/100/1000 Mbit/s
6
Interfaces
COM Total
3
RS-232/422/485
3
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 6xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 7xHDMI
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
89 mm
Depth
226 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
3.86 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
AMD Radeon E9260
Ethernet
10/100/1000 Mbit/s
6
Interfaces
COM Total
3
RS-232/422/485
3
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 6xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 7xHDMI
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
89 mm
Depth
226 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
3.86 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
AMD Radeon E9260
Ethernet
10/100/1000 Mbit/s
6
Interfaces
COM Total
3
RS-232/422/485
3
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 6xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 7xHDMI
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
89 mm
Depth
226 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
3.86 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
AMD Radeon E9260
Ethernet
10/100/1000 Mbit/s
6
Interfaces
COM Total
3
RS-232/422/485
3
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 6xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 7xHDMI
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
89 mm
Depth
226 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
3.86 kg
Gross Weight
4.5 kg

Documentation
ABOX-5000G-i7-Datasheet
Documentation
ABOX-5000G-i7-Datasheet
Documentation
ABOX-5000G-i7-Datasheet
Documentation
ABOX-5000G-i7-Datasheet
