6GK6023-0AS23-3DC0-Z-CONFIG1
Siemens AG
SKU: 56997900

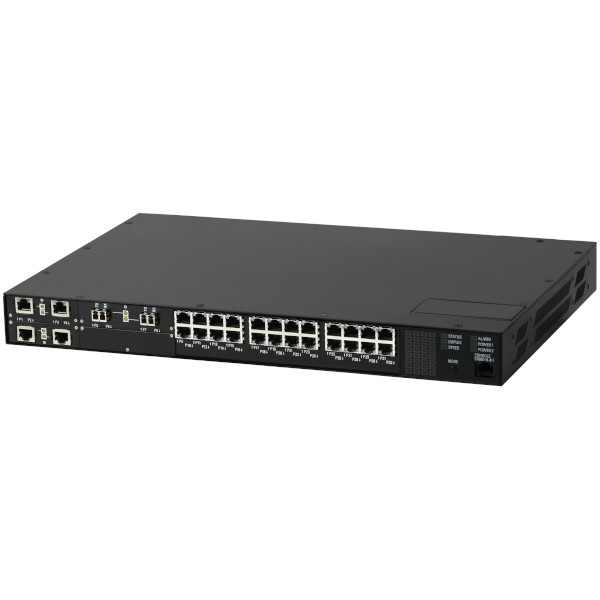

A00+B00+C07+D00 : RUGGEDCOM RSG2300 : SIEMENS Code 6GK6023-0AS23-3DC0-Z A00+B00+C07+D00, RuggedCOM Code
Price on request
Available
Available
Ethernet
Total Ethernet
8
SFP 1000 Mbit Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, TFTP, IGMP, DHCP Client
Reservation protocols
HSR, PRP
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage DC
88..300 V
Power Supply Reserve input Voltage DC
88..300 V
Input Voltage AC
85..265 V
Power Supply Reserve input Voltage AC
85..265 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Dimensions and weight
Width
464.8 mm
Depth
315 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
Power Automation
IEC 61850-3
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
5.2 kg
Gross Weight
5.7 kg
