306Q-POS-Tablet--M

306Q-POS-Tablet--M

DT Research
SKU: 80166300

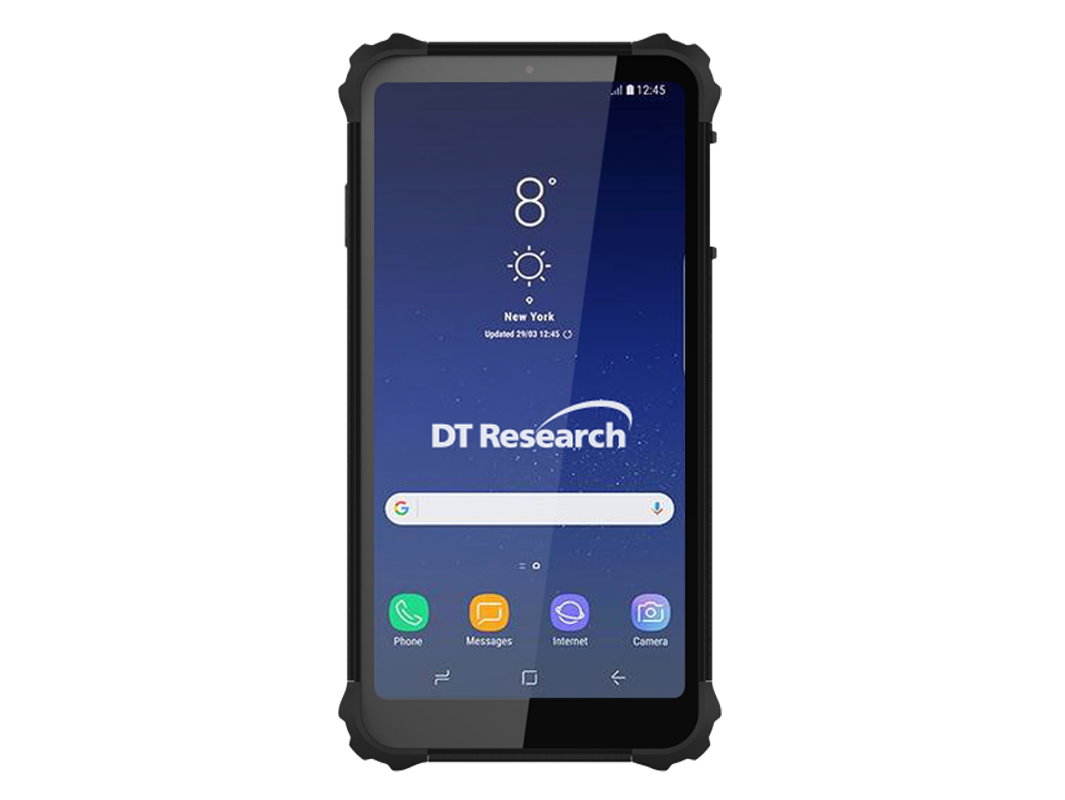

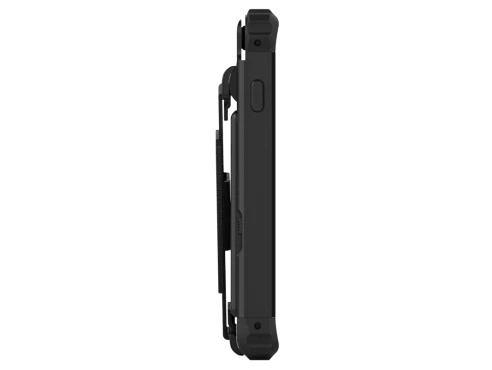

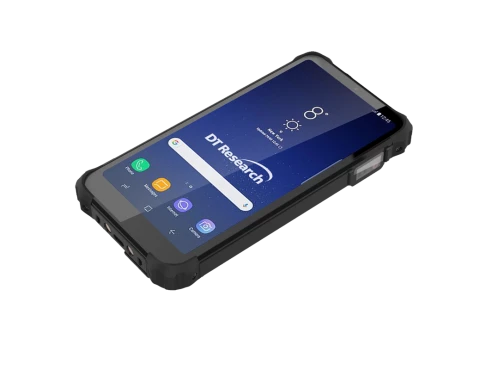

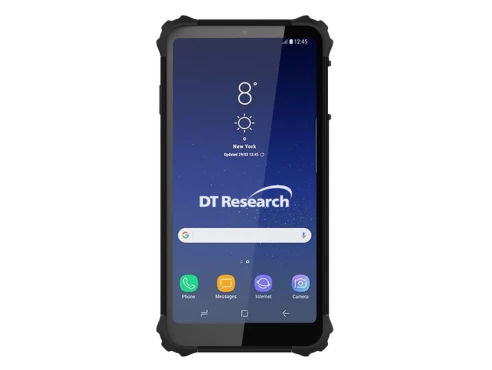

6" POS Tablet, 720x1440, PCAP Touch, Qualcomm 8-Core SoC, 4GB RAM, 64GB Flash Storage, 1xUSB Type-C, MicroSD, WiFi/BT, Opt. (LTE/GPS/NFC/RFID/8MP Cam./2D Barcode/Magnetic Stripe Reader), 4600mAh Bat., 5VDC-in w/ PSU, Android 10
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
6 "
Maximum resolution
720x1440 Dots
CPU
Processor Installed
ARM Cortex
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
64 GB
Additional Functions
GPS
Optional
RFID Reader
Optional
Barcode Scanner
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
Controls
On/Off
Connectors
Connectors

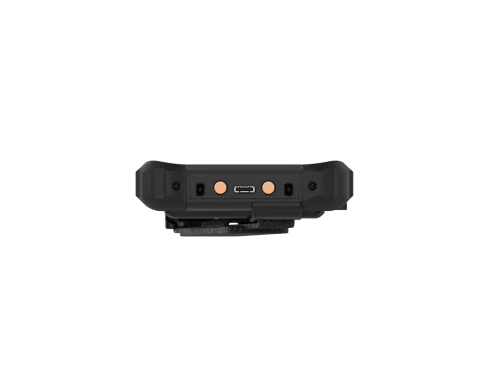

MicroSD card slot, USB type C

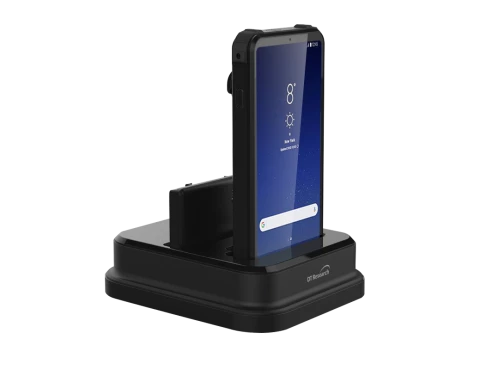

Docking Station
Yes
System Power Input
Input Voltage DC
5..5 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4600 mA*h
Battery 1 Hotswap
Yes
Software
Operating System Installed
Android
Dimensions and weight
Width
86 mm
Height
166 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
0.32 kg
Gross Weight
0.55 kg
