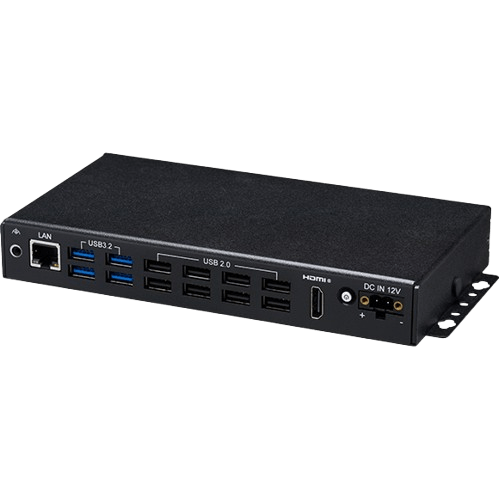

The Neu-XE105-N50-12U is a fanless embedded PC designed for interactive terminals, self-service applications and amusement systems. It combines an Intel® Processor N50 with extensive peripheral connectivity in a chassis measuring just 220 × 106.9 × 29.6 mm.
System integrators and equipment manufacturers can connect touch displays, card readers, ticket printers, speakers and control buttons directly to the Neu-XE105.
Intel Processor N50 with DDR5 memory
The Neu-XE105 is based on the Intel® Processor N50 with a 6 W TDP and integrated Intel® UHD Graphics. One DDR5-4800 SO-DIMM supports up to 16 GB of non-ECC memory. The system supports TPM 2.0.
Connectivity for interactive terminals
The Neu-XE105 provides:
- 4 × USB 3.2 Type-A
- 8 × USB 2.0 Type-A
- 1 × 2.5GbE RJ45
- 2 × RS-232
- 1 × RS-485
- 16-bit programmable GPIO
- HDMI® 1.4 up to 3840 × 2160 at 30 Hz
- speaker output with integrated 20 W / 4 Ω amplifier
For storage, the Neu-XE105 includes an M.2 Key M 2242 slot for a SATA 3.0 SSD. An M.2 Key E 2230 slot supports an optional Wi-Fi module.
Thermal integration and power supply
Weighing approximately 0.3 kg, the Neu-XE105 can be integrated where installation space is limited. The system does not use an internal fan. However, sufficient airflow inside the equipment enclosure is required for operation across the specified temperature range of 0 °C to 45 °C.
Power is supplied through a 12 V DC input via a 2-pin header.
Product information and configuration
Storage capacity, optional Wi-Fi and peripheral configuration can be selected according to the installation.
More information and product specifications are available on the IPC2U product page for the NEXCOM Neu-XE105-N50-12U.
We support the selection of the appropriate system configuration for your application.
