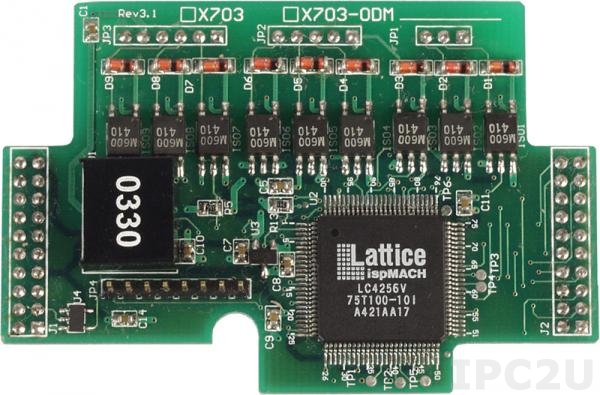

X703

X703

SKU: 02981600

3 Axis Encoder Input Module for I-7188XB/XG/EX/EG

Price on request

Construction

Construction Chassis

Open Frame

Mounting Configuration

Embedded

Digital Input

Number of channels

3

Signal Type

CW/CCW, Pulse/Dir, Quadrant

Counter capacity

32 Bit

Max frequency

1 kHz

Dimensions

Gross Weight

0.1 kg
