I/O X Series Expansion Boards

X005

X005

SKU: 01391600

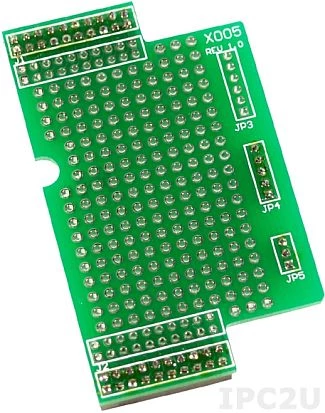

Prototype Board for I-7188XB/EX, 64 x 38 mm

Price on request

Construction

Construction Chassis

Open Frame

Mounting Configuration

Embedded

Dimensions and weight

Width

38 mm

Height

64 mm

Dimensions

Gross Weight

0.1 kg

Documentation

datasheet iobus_e I/O Expansion Bus for I-7188X/E
