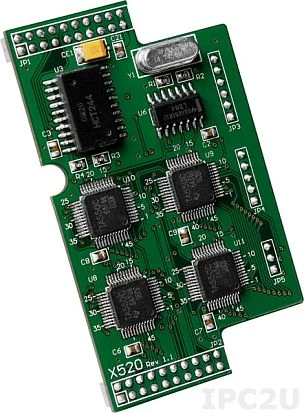

X520
ICP DAS
SKU: 66339700
4-port RS-232 (3-Pin), 1-ch D/I and 2-ch D/O Board, for I-7188XB/XG/EX/EG, mPAC-7186EX/PEX/EG/EX-FD/EX-SM
Price on request
Available on order
Available on order
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Interfaces
RS-232
4
Digital Input
Total channels of digital input
1
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Interfaces
RS-232
4
Digital Input
Total channels of digital input
1
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Interfaces
RS-232
4
Digital Input
Total channels of digital input
1
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Interfaces
RS-232
4
Digital Input
Total channels of digital input
1
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Gross Weight
0.1 kg
