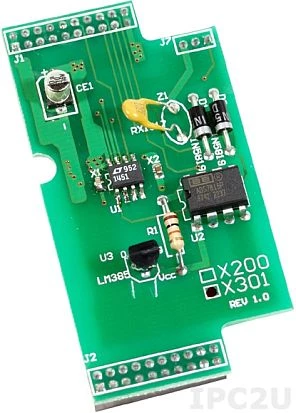

X301

X301

ICP DAS
SKU: 01405800
1 Channel Analog Input & 1 Channel Analog Output Board for I-7188XC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
1
Number of Bits
12 Bit
Voltage range
0...2.5 V
Sampling rate
200 Hz
Analog Output
Channels of analog input
1
DAC Bit Rate
12 Bit
Voltage range
0...4.095 V
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
1
Number of Bits
12 Bit
Voltage range
0...2.5 V
Sampling rate
200 Hz
Analog Output
Channels of analog input
1
DAC Bit Rate
12 Bit
Voltage range
0...4.095 V
Dimensions
Gross Weight
0.1 kg
