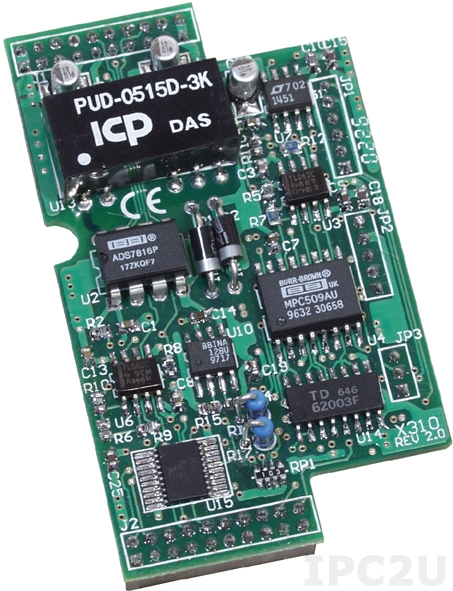

X310

X310

ICP DAS
SKU: 01635300
2 AI (0...20mA, 0...10V), 2 AO (20mA, 0...10V), 3 DI (3.5...30VDC), 3 DO (30VDC max) Module for I-7188XB/EX
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
2
Number of Bits
12 Bit
Voltage range
0...10 V
Current range
0...20 mA
Sampling rate
1 Hz
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...10 V
Digital Input
Total channels of digital input
3
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
3
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Gross Weight
0.1 kg
