X308

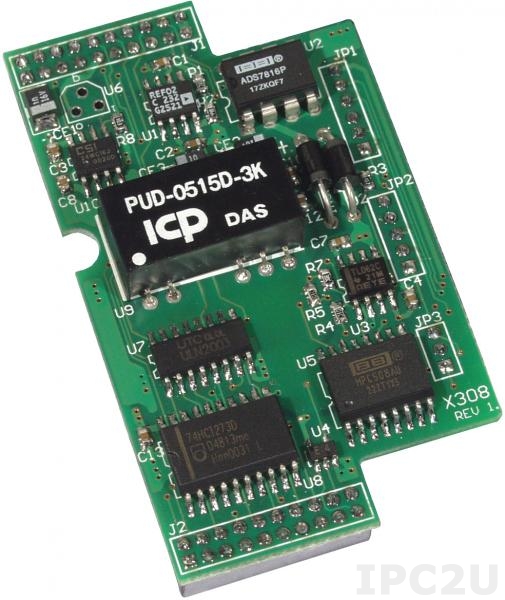

X308

ICP DAS
SKU: 02318000
4 AI, 6 DO Module for I-7188XB/EX/XG/EG
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
0...10 V
Sampling rate
1 Hz
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
0...10 V
Sampling rate
1 Hz
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
0...10 V
Sampling rate
1 Hz
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
0...10 V
Sampling rate
1 Hz
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg

Documentation
datasheet datasheet-x702 I/O Expansion Bus for I-7188X/E
Documentation
datasheet datasheet-x702 I/O Expansion Bus for I-7188X/E
Documentation
datasheet datasheet-x702 I/O Expansion Bus for I-7188X/E
Documentation
datasheet datasheet-x702 I/O Expansion Bus for I-7188X/E
