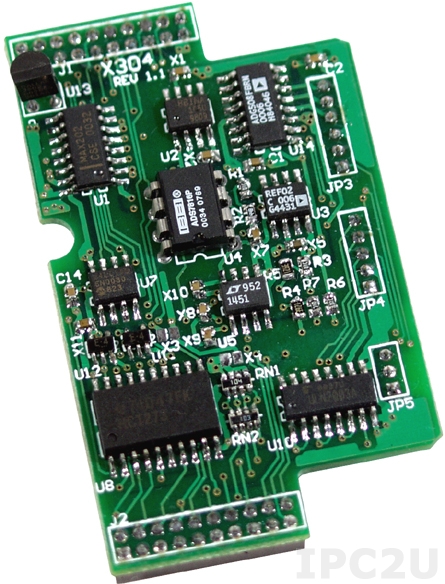

X304

X304

ICP DAS
SKU: 01635000
3 AI, 1 AO, 4 DI, 4 DO Module for I-7188XB/EX
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
3
Number of Bits
12 Bit
Voltage range
+/-5 V
Sampling rate
1 Hz
Analog Output
Channels of analog input
1
DAC Bit Rate
12 Bit
Voltage range
+/-5 V
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
