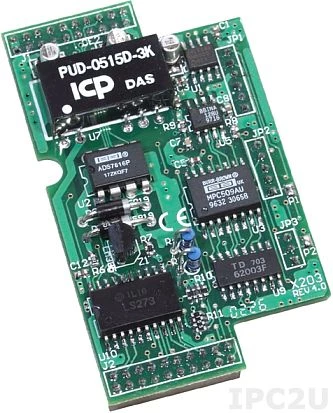

X203
ICP DAS
SKU: 01634300
2 AI (0...20mA, +/-15V), 2DI (30V max), 6DO (30V/100mA max) Module for I-7188XB/EX
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
2
Number of Bits
12 Bit
Current range
0...20 mA
Sampling rate
1 Hz
Differential channels
2
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
2
Number of Bits
12 Bit
Current range
0...20 mA
Sampling rate
1 Hz
Differential channels
2
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
2
Number of Bits
12 Bit
Current range
0...20 mA
Sampling rate
1 Hz
Differential channels
2
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
2
Number of Bits
12 Bit
Current range
0...20 mA
Sampling rate
1 Hz
Differential channels
2
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink
Digital Output
Total channels of digital output
6
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
