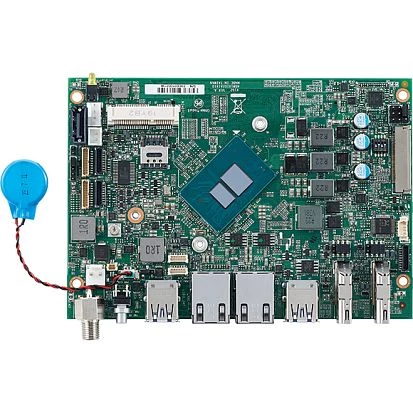

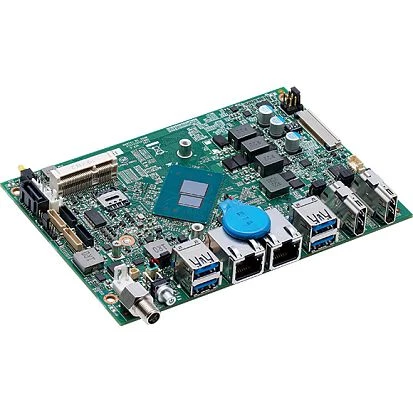

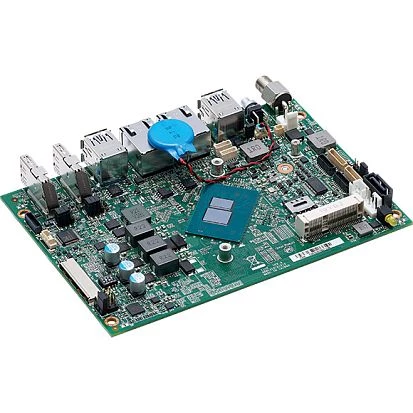

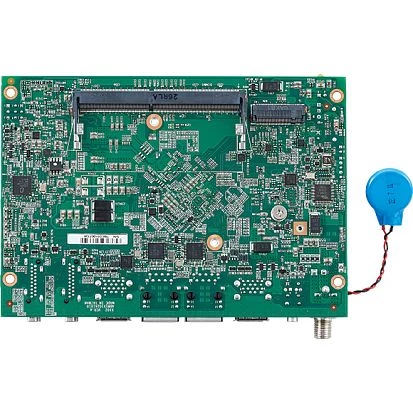

X102-N97
NEXCOM
SKU: 57772800
3.5" Embedded Board, Intel Alder Lake N97 3.6GHz SoC, Up to 16GB DDR4 RAM, 2xHDMI/eDP/LVDS, 2x2.5 GbE LAN, 4xUSB 3.2, 3xUSB 2.0 (2xheaders), 2xCOM, 1x8-bit GPIO, 1xSATA, 1xM.2 2242, 1xMini-PCIe, 1xSIM, Audio, 12VDC-in Jack, 0..60C Operating temp.
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Chipset
Chipset
Intel SoC
Memory
Socket Type
1xDDR4 SODIMM 260-pin
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, 2xHDMI, eDP
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
7
USB 2.0
3
Audio
Audio Controller
Realtek ALS888S
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x, Windows 11
Dimensions and weight
Width
102 mm
Length
146 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.8 kg
Gross Weight
1 kg
