WTP-8B66-19

WTP-8B66-19

Wincomm
SKU: 06881500

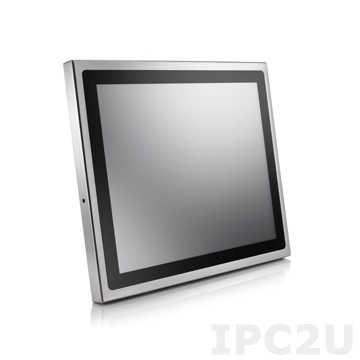

Fanless Stainless Panel PC 19" LCD LED, full IP66,1280 x 1024, 350 nits, with Intel Celeron J1900 2.0GHz, resistive touchscreen, 4GB DDR3, 500GB HDD, 8xM12 (4xUSB, 2xCOM, LAN, DC power), 2xMini-PCIe, power adapter 12V DC
Price on request
Available
Available

Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
Audio
Audio Controller
Realtek ALC262
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off
Connectors
Connectors
6xM12
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
12 kg
Gross Weight
13 kg
