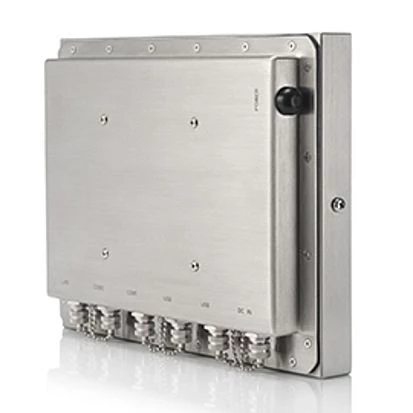

WTP-8B66-10
Wincomm
SKU: 08599800

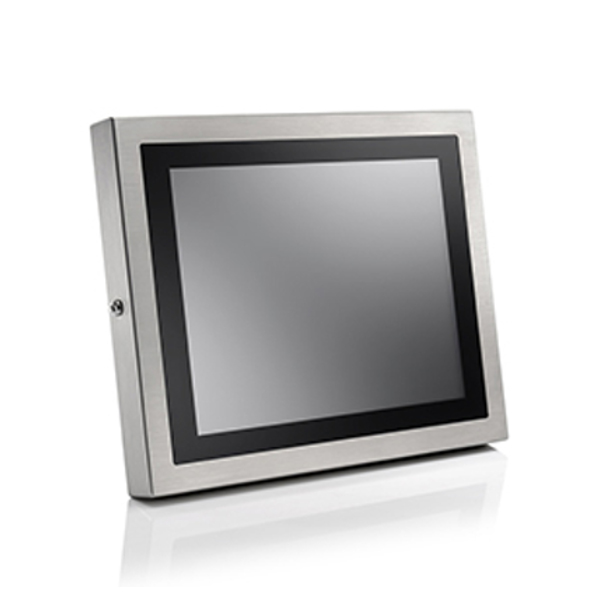

10" Fanless Industrial Panel PC, Resistive touch, Intel Atom E3845, Up to 8GB DDRL, 500GB HDD, 1xM12 GB LAN, 2xCOM(1xM12), 4xUSB (2xM12), 2xMini PCIe, 9-36V DC, 0...+50C Operating Temperature
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
10 "
Maximum resolution
800x600 Dots
Brightness
230 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
Audio
Audio Controller
Realtek ALC262
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
6.9 kg
Gross Weight
8 kg
